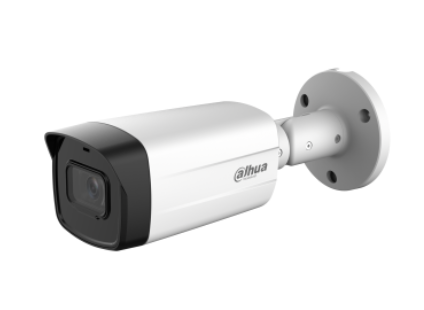

DAHUA HAC-HFW1500TM-I8-A

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm;6 mm;8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 111°; V: 58°; D: 132°
3.6 mm: H: 92°; V: 48°; D: 109°
6.0 mm: H: 57°; V: 30°; D: 65°
8.0 mm: H:43°; V:24°; D: 48°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)
6 mm: 3.1 m (10.17 ft)
8 mm: 4.9 m (16.08 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m
(208.66 ft)

25.4 m
(83.33 ft)

12.7 m
(41.67 ft)

6.4 m
(21.00 ft)

3.6 mm

80.0 m
(262.47 ft)

32.0 m
(104.99 ft)

16.0 m
(52.49 ft)

8.0 m
(26.25 ft)

6 mm

120.0 m
(393.70 ft)

48.0 m
(157.48 ft)

24.0 m
(78.74 ft)

12.0 m
(39.37 ft)

8 mm

150.4 m
(493.44 ft)

60.2 m
(197.51 ft)

30.1 m
(98.75 ft)

15.0 m
(49.21 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one
BNC port

Audio Input

One channel built-in Mic (-A)

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 5.2 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

240.7 mm × 90.7 mm × 90.7 mm (9.48″ × 3.57″ × 3.57″)

Net Weight

0.65 kg (1.43 lb)

Gross Weight

0.90 kg (1.98 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
