描述

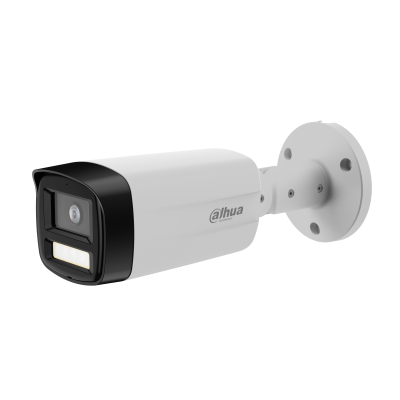

HAC-HFW1509TM-A-LED
5MP Full-color HDCVI Fixed-focal Bullet Camera
HAC-HFW1509TM-A-LED 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
5 MP CMOS |
| Max. Resolution |
2880 (H) × 1620 (V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s |
| Min. Illumination |
0.0005 [email protected] (Color, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio |
>65 dB |
| Illumination Distance |
3.6 mm: 40 m (131 ft) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
4 (Warm light) |
| Angle Adjustment |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens
| Lens Type |
Fixed-focal |
| Auto Focus |
No |
| Lens Mount |
M12 |
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
3.6 mm: H: 88°; V: 46°; D: 104° |
| Iris Control |
Fixed |
| Close Focus Distance |
3.6 mm: 2.3 m (7.55 ft) |
| DORI Distance |
LensDetectObserveRecognizeIdentify3.6 mm 80.0 m( 262.47 ft) 32.0 m( 104.99 ft) 16.0 m( 52.49 ft) 8.0 m ( 26.25 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Video
| Video Frame Rate |
CVI: PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps; 4M@25 fps NTSC: 5M 16:9@20 fps; 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution |
5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night |
Color |
| BLC |
BLC; HLC; WDR; HLC-Pro |
| WDR |
120 dB |
| White Balance |
Auto;Area white balance |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D NR |
| Illumination Mode |
Smart Light |
| Defog |
Electronic defog |
| Digital Zoom |
4× |
| Mirror |
Yes |
| Privacy Masking |
Off/On (8 areas, rectangle) |
| Pick-up Distance |
8 m (26.25 ft) |
Certification
| Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
Audio
Port
| Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Upgrade Port |
42 |
Power
| Power Supply |
12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
| Power Consumption |
Max 9 W (12 VDC, LED on) |
Environment
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Protection |
IP67 |
| Anti-corrosion Level |
Basic Protection |
Structure
| Casing Material |
Metal |
| Product Dimensions |
240.8 mm × 80.2 mm × 90.7 mm (9.48" × 3.16" × 3.57") (L × W × H) |
| Net Weight |
0.66 kg (1.46 lb) |
| Gross Weight |
0.85 kg (1.87 lb) |
| Installation |
Wall mount; ceiling mount; vertical pole mount |
