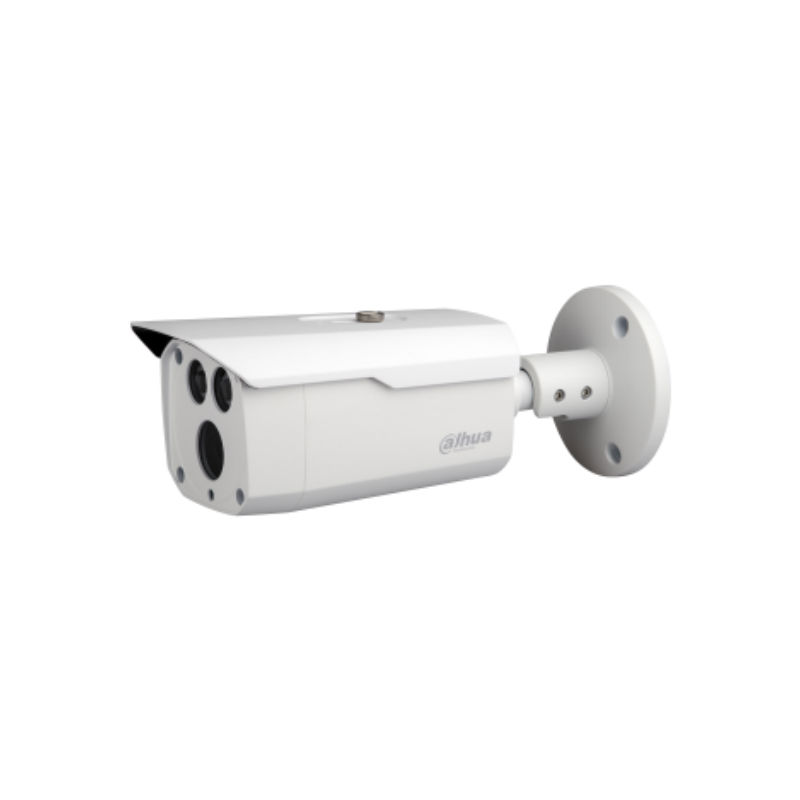

DAHUA HAC-HFW1801D

4K HDCVI IR Bullet Camera

> 120dB True WDR, 3D NR
> Max. 4K resolution
> CVI/CVBS/AHD/TVI switchable
> Fixed lens (3.6mm; 6mm optional)
> Max. IR length 80m, smart IR
> IP67, 12V±30%DC

描述

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H)×2160 (V), 4K

Electronic Shutter Speed

PAL: 1/3s-1/100000s
NTSC: 1/4s-1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

IR Distance

Distance up to 80m (262.47ft)

IR On/Off Control

Auto/manual

IR LED Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6mm; 6mm

Max. Aperture

F2.0

Angle of View

3.6mm: 104°×87°×47° (diagonal×horizontal×vertical)
6mm: 62.4°×54.7°×31.3° (diagonal×horizontal×vertical)

Iris Type

Fixed iris

Close Focus Distance

1.8m/3.6m (5.91ft/11.81ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

107m (351ft)

43m (141ft)

21m (69ft)

11m (36ft)

6mm

160m (525ft)

64m (210ft)

32m (105ft)

16m (52ft)

Video

Video Frame Rate

CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps
CVBS: PAL/NTSC
AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps
TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

120dB/WDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D&3D NR

Smart IR

Yes

Electronic Defog

Yes

Digital Zoom

4X

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)”

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V±30% DC

Power Consumption

Max 6.5W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95%

(non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front cover+plastic main body+plastic bracket

Dimensions

241.8mm×90.4mm×90.4mm ( 9.52″×3.56″×3.56″)

Net Weight

600g (1.32lb)

Gross Weight

760g (1.68lb)
