DAHUA HAC-HFW2241CM-A-POC

描述

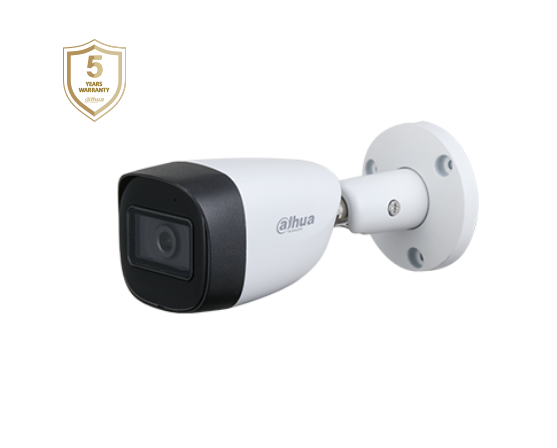

DAHUA HAC-HFW2241CM-A-POC

2 MP Starlight HDCVI Fixed IR Bullet Camera

* The parameters and datasheets below can only be applied to 2241-S2-POC series

> Max 30 fps@1080p

> Starlight, 130 dB true WDR, 3D NR
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> Super Adapt
> Built-in mic
> Max. IR length 30 m, Smart IR
> IP67, PoC (only CVI)/12V±30% DC



Specifications

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Pixel2 MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio> 65 dB
Min. Illumination0.001 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance30 m (98.4 ft)
Illuminator On/Off ControlAuto; manual
Illuminator Number2 (IR light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed lens
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 109°; V:58°; D: 127°
3.6 mm: H: 86°; V:46°; D: 101°
Iris TypeFixed iris
Close Focus Distance2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm42.2 m

(138.5 ft)

16.9 m

(55.4 ft)

8.4 m

(27.6 ft)

4.2 m

(13.8 ft)

3.6 mm53.7 m

(176.2 ft)

21.5 m

(70.5 ft)

10.7 m

(35.1 ft)

5.4 m

(17.7 ft)

Video
Frame RateCVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H
Resolution1080P (1920 × 1080); 960H (960 × 576 / 960 × 480)
Day/NightAuto switch by ICR
BLCBLC/WDR/HLC
WDR130dB
White BalanceAuto/Area WB
Gain ControlAuto; manual
Noise Reduction3D NR
Smart IRYes
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic
Power
Power SupplyPOC (only CVI)/12V±30% DC
Power ConsumptionMax 3W (12V DC, IR on) PoC (AF)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Storage Temperature–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Protection GradeIP67
Structure
CasingMetal throughout the whole casing
Camera Dimensions161.3 mm × 69.7 mm × 70.0 mm (6.35″ × 2.75″ × 2.75″)
Net Weight0.35 Kg (0.8 lb)
Gross Weight0.45 Kg (1.0 lb)
