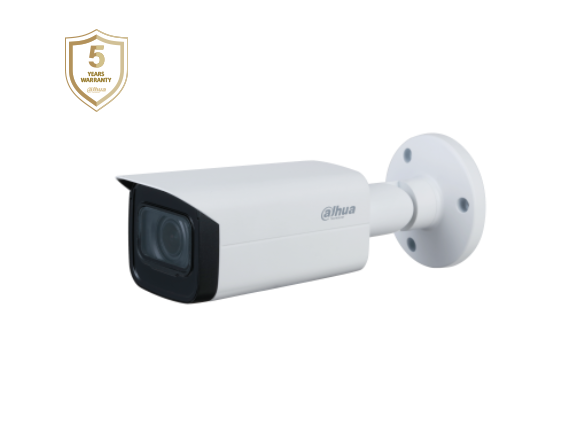

DAHUA HAC-HFW2501TU-Z-A-POC

描述

DAHUA HAC-HFW2501TU-Z-A-POC

5MP Starlight HDCVI IR Bullet Camera

* The parameters and datasheets below can only be applied to 2501-POC-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max. 25 fps@5MP (16:9 video output)

> Starlight, 120 dB true WDR, 3D NR
> CVI/CVBS/AHD/TVI switchable
> Built-in mic
> 2.7 mm–13.5 mm motorized lens
> Max. IR length 80 m, Smart IR
> IP67, PoC (only CVI)/12V±30% DC

Specifications

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6; 30IRE; 0 Lux IR on

Illumination Distance

80 m (262.5 ft)

Illuminator On/Off Control

Auto/manual

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.6

Field of View

H: 31.4°–113°

V: 17.6°–58°

D: 36°–138°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft)

DORI distance

Lens

Detect

Observe

Recognize

Identify

2.7mm

64.0 m

(210.0 ft)

25.6 m

(84.0 ft)

12.8 m

(42.0 ft)

6.4 m

(21.0 ft)

13.5mm

210.0 m

(689.0 ft)

84.0 m

(275.6 ft)

42.0 m

(137.8 ft)

21.0 m

(68.9 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps

NTSC: 5M@25 fps; 4M@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto/manual

Gain Control

Auto/manual

Noise Reduction

3D NR

Smart Illumination

Yes

Digital Zoom

4x

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Interface

One channel built-in mic

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max 8.2W (12V DC, IR on); PoC (AT)

Environmental

Operating Temperature

–30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

244.1 mm × 90.4 mm × 90.4 mm

(9.61″ × 3.56″ × 3.56″)

Net Weight

0.80 kg (1.76 lb)

Gross Weight

1.06 kg (2.34 lb)
