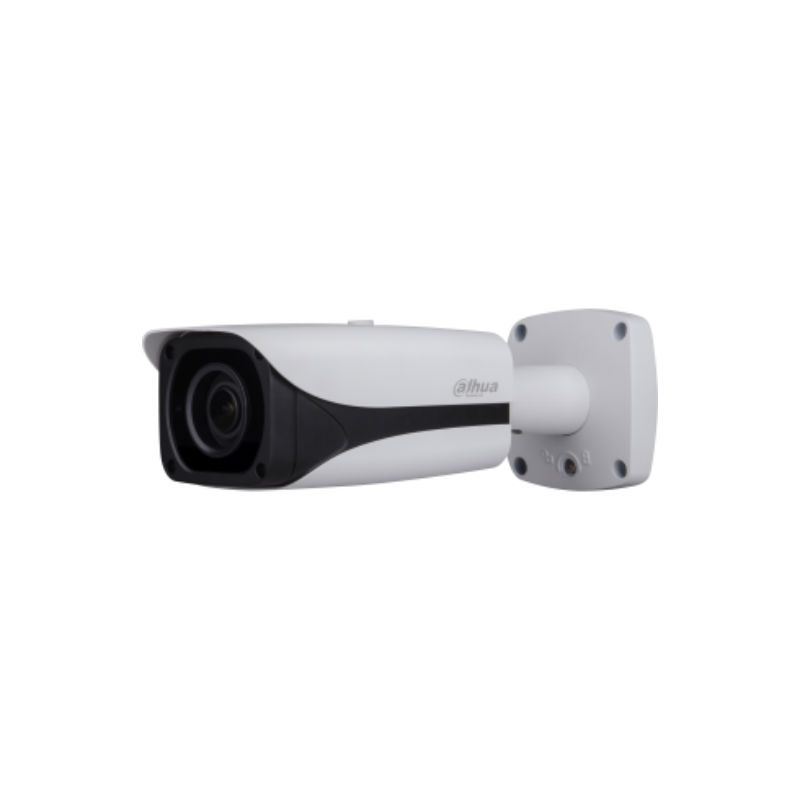

DAHUA HAC-HFW3231E-ZH

2MP Starlight HDCVI IR Bullet Camera

> Starlight, 120dB true WDR, 3DNR
> Max 30fps@1080P
> HD and SD dual-output
> 2.7-12mm motorized lens
> Max. IR length 100m, Smart IR
> IP67, IK10, AC24V/DC12V, Heater

描述

Camera

Image Sensor1/2.8″ CMOS
Effective Pixels1945(H)×1097(V), 2.1MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination0.005Lux/F1.4, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 100m (328feet)
IR On/Off ControlAuto / Manual
IR LEDs4

Lens

Lens TypeMotorized lens / Auto iris
Mount TypeBoard-in
Focal Length2.7-12mm
Max ApertureF1.4
Angle of ViewH: 95°~36°
Focus ControlAuto / Manual
Close Focus Distance300mm

11.81”

Pan / Tilt / Rotation

Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

CVBS tester out

Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D / 3D
White BalanceAuto / Manual
Smart IRAuto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
WideTele
Detect25px/m (8px/ft)48m(159ft)133m(437ft)
Observe63px/m (19px/ft)19m(64ft)53m(175ft)
Recognize125px/m (38px/ft)10m(32ft)27m(87ft)
Identify250px/m (76px/ft)5m(17ft)13m(44ft)

Certifications

CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface1-channel audio in
Alarm Interface1-channel alarm in & 1-channel alarm out

Electrical

Power SupplyAC 24V±25% / DC 12V±25%
Power ConsumptionMax 22.9W (12V DC, IR & heater on)

Environmental

Operating Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal ResistanceIP67 & IK10

Construction

CasingAluminium
Dimensions273.2mm×95.0mm×95.0mm (10.76″×3.74″×3.74″)
Net Weight1.16kg (2.56lb)
Gross Weight1.52kg (3.35lb)
