DAHUA HAC-HUM3201B-P

描述

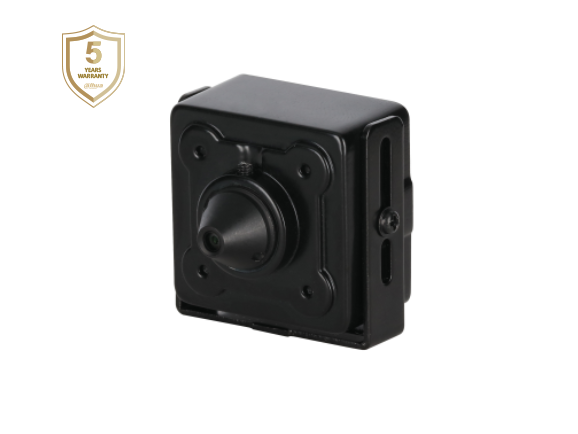

DAHUA HAC-HUM3201B-P

2MP Starlight HDCVI Pinhole Camera

> Starlight, 120dB true WDR, 3DNR
> Max 30fp@1080P
> HD and SD output switchable
> 2.8mm fixed lens
> Audio in interface
> DC12V



Specifications

Camera
Image Sensor1/2.8 inch CMOS
Effective Pixels1920 (H) × 1080 (V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/3s–1/100000s
NTSC: 1/4s–1/100000s
S/N Ratio>65 dB
Minimum IlluminationColor: 0.004LuxLux/F2.4
Black & White: 0.0004LuxLux/F2.4
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Max. ApertureF2.4
Angle of View117.9° × 103° × 59° (diagonal x horizontal x vertical)
Iris TypeFixed iris
Close Focus Distance0.5 m (1.6 ft)
DORI DistanceD: 42.1 m (138.1ft); O: 16.8 m (55.1 ft); R: 8.4 m (27.6 ft); I: 4.2 m (13.8 ft)
Video
Frame RateCVI:
PAL: 1080P@25fps, 720P@25/50fps
NTSC: 1080P@30fps, 720P@30/60fps
AHD: PAL: 1080P@25fps, 720P@25fps
NTSC: 1080P@30fps, 720P@30fps
TVI: PAL: 1080P@25fps, 720P@25ps
NTSC: 1080P@30fps, 720P@30ps
CVBS: PAL: 960 × 576H
NTSC: 960 × 480H
Resolution1080P (1920 × 1080); 720P (1280 × 720); 960H (704 × 576/704 × 480)
Day/NightAuto switch by ICR
BLCBLC/HLC/WDR
WDR120 dB
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction3D NR
Smart IRYes
Electronic DefogYes
Digital Zoom4 ×
MirrorOff/On
Privacy MaskingOff/On
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel, RCA sound pick-up port
Power
Power Supply12V ±30% DC
Power ConsumptionMax 2.11W
Environmental
Operating Temperature-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Storage Temperature-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Protection GradeNA
Construction
CasingMetal throughout the whole casing
Camera Dimensions43.5 mm × 36.2 mm × 29.5 mm (1.71″ × 1.43″ × 1.16″)
Net Weight0.04 kg (0.09 lb)
Gross Weight0.14 kg (0.31 lb)
