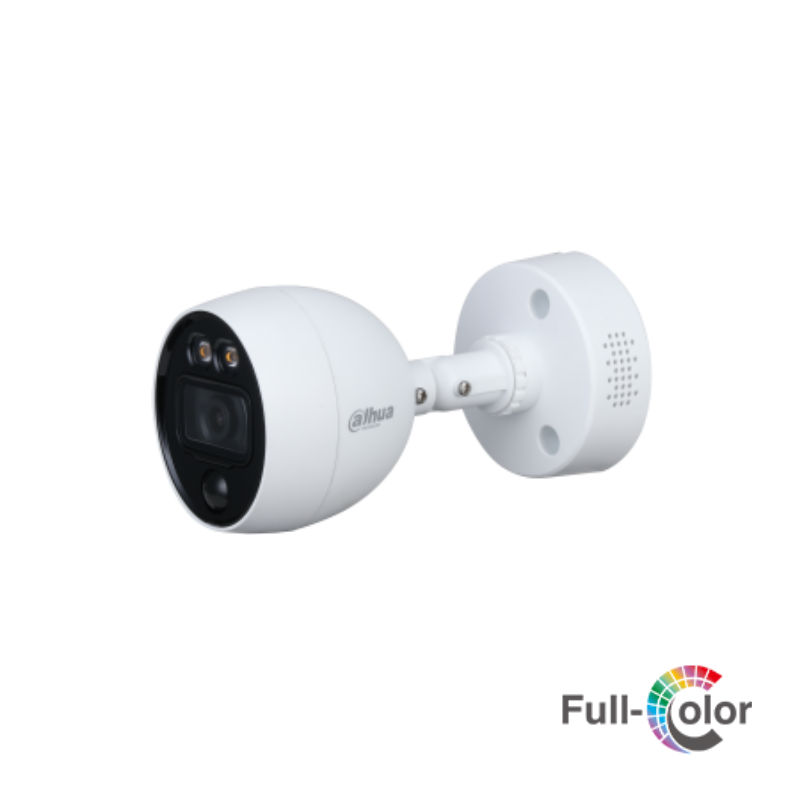

DAHUA HAC-ME1509B-PIRLS

5MP HDCVI Full-Color Active Deterrence Fixed Bullet Camera

> 24/7 color imaging
> Active deterrence with siren
> Built-in PIR, 10 m/110° detecting range/angle
> Max. 20 fps@5MP
> 2.8 mm fixed lens (3.6 mm optional)
> 40 m illumination distance
> IP67, 12V±30% DC

描述

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

2592 (H) × 1944 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.2, 0 Lux warm light on

Illumination Distance

40 m (131.2 ft)

Illumination Type

Warm light

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.2
3.6 mm: F1.2

Field of View

2.8 mm: H: 98°; V: 71°; D: 129°
3.6 mm: H: 83°; V: 60°; D: 112°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.6 m (5.25 ft)
3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m (221.1 ft)

27 m

(88.6 ft)

13.5 m (44.3 ft)

6.7 m

(22.0 ft)

3.6 mm

77.8 m (255.3 ft)

31.1 m (102.0 ft)

15.6 m

(51.2 ft)

7.8 m

(25.6 ft)

Video

Frame Rate

CVI:
5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps;
AHD:
5M@20 fps;
TVI:
5M@20 fps;
CVBS:
960H

Resolution

5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

BLC Mode

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

IEC 62368-1:2014 (Second Edition)

Port

Video Output

1 BNC output
Support CVI/TVI/AHD/CVBS

Power

Power Supply

12V ±30% DC

Power Consumption

Max 7.0W (12V DC, warm light on)

PIR Parameters

Detection Component

Pyroelectric infrared sensor

Detection Range

10 m (32.8 ft), 110°

Recommended Installation Height

2.2 m–3 m (7.2 ft–9.8 ft)

Recommended Environment Temperature for PIR

–10°C to 50°C (14°F to 122°F)

Active Deterrence Parameters

Sound Warning

Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F);

<95% (non-condensation)

Ingress Protection

IP67

Structure

Casing

Cover: Metal
Rear: Plastic

Camera Dimensions

164.2 mm × 83 mm × 72.4 mm (6.46″ × 3.27″ × 2.85″)

Net Weight

0.27 kg (0.60 lb)

Gross Weight

0.39 kg (0.85 lb)
