DAHUA HAC-ME1800B-L

描述

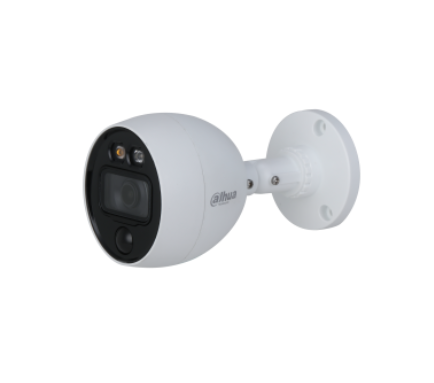

DAHUA HAC-ME1800B-L

4K Real-time HDCVI Active Deterrence Fixed IR Bullet Camera

> Max. 4K resolution, real-time video transmission
> Active deterrence with warm light
> Built-in PIR, 10 m/110°detecting range/angle
> 2.8 mm fixed lens
> Max. IR length 20 m, Smart IR
> IP67, 12V±30% DC

Specifications

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

Pixel

4K

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s

NTSC: 1/30 s–1/100000 s

Min. Illumination

0.02 Lux/F2.0, 30 IRE, 0 Lux IR on

S/N Ratio

>65 dB

Illumination Distance

20 m (65.6 ft)

Illumination Type

IR

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

2.8 mm: F2.0

Field of View

2.8 mm: D: 125°; H: 105°; V: 56°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft)

DORI Distance

2.8 mm: D: 74.7 m (245.1 ft); O: 29.9 m (98.1 ft); R: 14.9 m (48.9 ft); I: 7.5 m (24.6 ft)

Video

Frame Rate

CVI: 4K@25/30 fps; 4K@15 fps; 5M@20 fps;

4M@25 fps/30 fps;

AHD: 4K@15 fps;

TVI: 4K@15 fps;

CVBS: 960H

Resolution

4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

ICR auto switch

BLC Mode

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

IEC 62368-1:2014 (Second Edition)

Port

Video Output

1 BNC output

Support CVI/TVI/AHD/CVBS

Power

Power Supply

12V ±30% DC

Power Consumption

Max 7.2W (12V DC, IR on)

PIR Parameters

Detection Component

Pyroelectric infrared sensor

Detection Range

10 m(32.8 ft), 110°

Recommended Installation Height

2.2 m–3 m (7.2 ft-9.8 ft)

Recommended Environment Temperature for PIR

–10°C to 50°C (14°F to 122°F)

Active Deterrence Parameters

White Light Warning

Solid: 5 s–30 s; flash: 5 s–30 s; frequency: high/medium/low

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F);<95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F);<95% (non-condensation)

Ingress Protection

IP67

Structure

Casing

Cover: Metal
Rear: Plastic

Camera Dimensions

146.6 mm × 72.4 mm × 83.0 mm (5.77″ × 2.85″ × 3.27″)

Net Weight

0.24 kg (0.53 lb)

Gross Weight

0.35 kg (0.76 lb)
