DAHUA HAC-ME1800TH-PV

描述

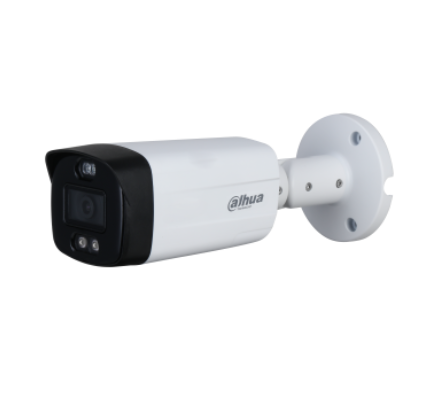

DAHUA HAC-ME1800TH-PV

4K Real-time HDCVI Active Deterrence Fixed IR Bullet Camera

> Max. 4K resolution, real-time video transmission
> Active deterrence with red blue light , siren and alarm out interface.
> 3.6 mm fixed lens(6 mm Optional)
> Max. IR length 80 m, Smart IR
> IP67, 12V±30% DC

Specifications

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

Pixel

4K

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.02 Lux/F2.0, 30 IRE, 0 Lux IR on

S/N Ratio

65 dB

Illumination Distance

80 m (265.5 ft)

Illumination Type

IR

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm; 6 mm

Max. Aperture

3.6 mm: F2.0
6 mm: F2.0

Field of View

3.6 mm: D: 104°; H: 87°; V: 47°
6 mm: D: 62°; H: 55°; V: 31°

Iris Type

Fixed iris

Close Focus Distance

3.6 mm: 1.9 m (6.2 ft)
6 mm: 3.6 m (11.81 ft)

DORI Distance

3.6 mm: D: 106.7 m (350.1 ft); O: 42.7 m (140.1 ft); R: 21.3 m (69.9 ft); I: 10.7 m (35.1 ft)
6 mm: D: 160 m (524.9 ft); O: 64 m (210.0 ft); R: 32 m (105.0 ft); I: 16 m (52.5 ft)

Video

Frame Rate

CVI: 4K@25/30 fps; 4K@15 fps; 5M@20 fps;
4M@25 fps/30 fps;
AHD: 4K@15 fps;
TVI: 4K@15 fps;
CVBS: 960H

Resolution

4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

ICR auto switch

BLC Mode

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
IEC 62368-1:2014 (Second Edition)

Port

Video Output

1 BNC output
Support CVI/TVI/AHD/CVBS

Power

Power Supply

12V ±30% DC

Power Consumption

Max 8.5W (12V DC, IR on)

Active Deterrence Parameters

Red Blue Light Warning

Flash: 5 s–30 s; frequency: high/medium/low

Sound Warning

Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F);<95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F);<95% (non-condensation)

Ingress Protection

IP67

Structure

Casing

Cover: Metal
Rear: Plastic

Camera Dimensions

240.7 mm × Φ90.7 mm (9.48″ × 3.57″ × 3.57″)

Net Weight

0.44 kg (0.97 lb)

Gross Weight

0.70 kg (1.54 lb)
