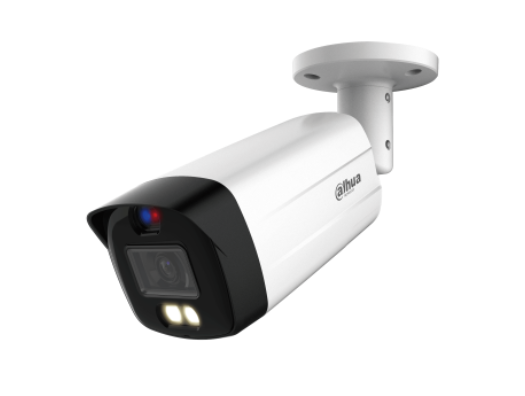

DAHUA HAC-ME1809TH-A-PV

4K Smart Dual Light TiOC HDCVI Bullet Camera

* The parameters and datasheets below can only be applied to ME1809-S2 series.Intelligent Voice Alarm function which can be used with Scheduled AI of AI XVR is only available for TiOC 2.0 camera.

* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

> Max 15 fps@4K.

> 120 dB true WDR, 3D NR.

> Smart Dual Light.

> Protection Against Red-Blue Light Interference(Only 4K).

> Active deterrence with red blue light, siren and alarm out interface.

> 40 m illumination distance.

> Super Adapt.

> Built-in mic.

> 3.6 mm fixed lens (2.8 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, 12 VDC.



Specifications

Camera
Image Sensor4K CMOS
Max. Resolution3840 (H) × 2160 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s
Min. Illumination0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination DistanceIR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number2 (Warm light);2 (IR light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Auto FocusNo
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 100°
Iris ControlFixed
Close Focus Distance2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (9.19 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm91.0 m

(298.56 ft)

36.4 m (119.42 ft)18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm107.6 m (353.02 ft)43.0 m (141.08 ft)21.5 m

(70.54 ft)

10.8 m

(35.47 ft)

Video
Video Frame RateCVI:
PAL: 4k@15 fps; 5M@25 fps; 4M@25 fps;
NTSC: 4k@15 fps; 5M@25 fps; 4M@30 fps;
AHD:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; WDR; HLC-Pro
WDR120 dB
White BalanceAuto;Area white balance
Gain ControlAuto/Manual
Noise Reduction3D NR
Illumination ModeSmart IR&WL; WL Mode; IR Mode
DefogElectronic defog
Digital Zoom4×
MirrorYes
Privacy MaskingOff/On (8 areas, rectangle)
Active Deterrence
Sound WarningAudio 1: alarm
Audio2: No parking here
Audio3: Private land no entry.
Audio4: Warning zone keep off
Audio5: Welcome
Volume: high/medium/low;
duration: 5 s–60 s; 110 dB
Red/Blue Light WarningFlash: 5 s–60 s; frequency: high/medium/low
Certification
CertificationsCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic
Alarm Output1 channel
Power
Power Supply12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power ConsumptionMax 10.45 W (12 VDC, IR on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Anti-corrosion LevelLow
Structure
Casing MaterialMetal front cover + plastic rear barrel + metal bracket
Product Dimensions240.7 mm × Φ90.7 mm (9.48″ × Φ3.57″)
Net Weight0.48 kg (1.06 lb)
Gross Weight0.74 kg (1.63 lb)
InstallationWall mount; ceiling mount; vertical pole mount
