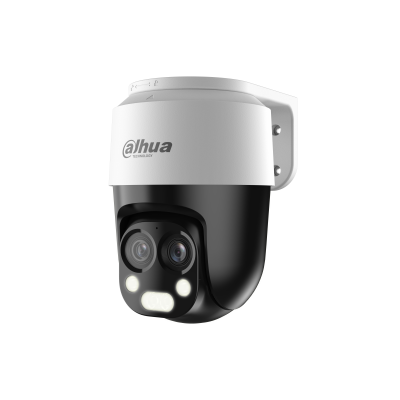

HAC-PT1200B-IL-A-E2Z
2MP Smart Dual Light HDCVI Vari-focal PT Camera
HAC-PT1200B-IL-A-E2Z 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 2 MP CMOS |
|---|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 50 m (164.04 ft) Warm light: 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (Multi-core light) |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 109°; V: 59.6°; D: 130.4°; 6.0 mm: H: 47.2°; V: 26.2°; D: 54.5° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft); 6 mm: 2.3 m (7.55 ft) |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
| Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|---|---|
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Defog | Electronic defog |
| Digital Zoom | 6× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
PT
| Pan/Tilt Range | Pan: 0°–355° Tilt: 0°–90° *Do not manually adjust the angle of the main body or enclosure. |
|---|---|
| Preset | 80 |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes |
|---|---|
| Camera Audio | CVI; TVI |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|---|
Power
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
|---|---|
| Power Consumption | Max 5.1 W (12 VDC, IR on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP66 |
| Anti-corrosion Level | Basic Protection |
Structure
| Casing Material | Plastic |
|---|---|
| Product Dimensions | Φ110.0 mm × 150.0 mm (Φ4.33" × 5.91") |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
