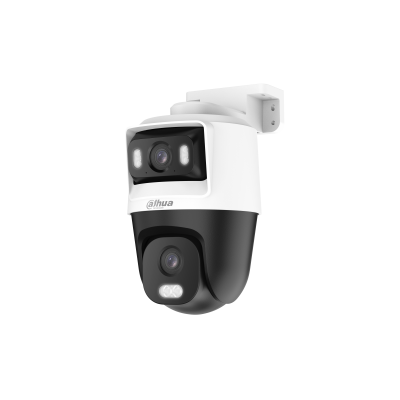

HAC-PTS1500C-E2-IL-A
5MP Smart Dual Light Outdoor HDCVI Dual-Lens PT Camera
HAC-PTS1500C-E2-IL-A 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 2×CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s-1/1,000 s NTSC: 1/30 s-1/1,000 s |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 50 m (164.04 ft) Warm Light: 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | Fixed Lens: 4 (Multi-core light) PT Lens: 2 (Multi-core light) |
| Angle Adjustment | Fixed Lens: Tilt: 5°–10° PT Lens: Pan: 0°–355°; Tilt: 0°–90° Bracket: Pan: 0°–326° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | PT Lens: 6 mm Fixed Lens: 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | Fixed Lens: H: 111.3°; V: 60.8°; D: 134.2° PT Lens: H: 48.1°; V: 26.7°; D: 55.5° |
| Close Focus Distance | Fixed Lens: 0.5 m (1.64 ft) PT Lens: 2.3 m (7.55 ft) |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft); 6 mm: 2.3 m (7.55 ft) |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
| Video Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
|---|---|
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Defog | Electronic defog |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
PT
| Pan/Tilt Range | Pan: 0°–355° Tilt: 0°–90° *Do not manually adjust the angle of the main body or enclosure. |
|---|---|
| Preset | 40 |
| Linkage Tracking | Yes |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes |
|---|---|
| Camera Audio | CVI; TVI |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|---|
Power
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
|---|---|
| Power Consumption | Max 10.1 W (12 VDC, IR on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP66 |
| Anti-corrosion Level | Basic Protection |
Structure
| Casing Material | Plastic |
|---|---|
| Product Dimensions | 162.5 mm × 122.6 mm × 218.2 mm (6.40" × 4.83" × 8.59") (L × W × H) |
| Net Weight | 0.66 kg (1.46 lb) |
| Gross Weight | 1.09 kg (2.40 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
