描述

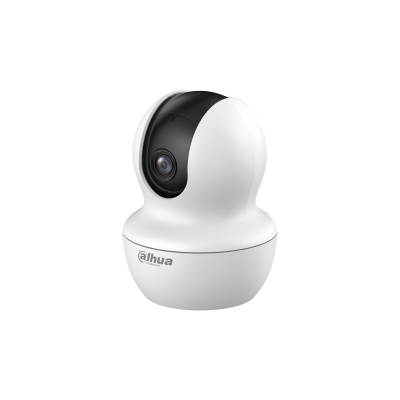

Hero A13 2K
3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
Hero A13 2K 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/3.2" CMOS |
| Max. Resolution |
2304 (H) × 1296 (V) |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance |
Up to 10 m (32.81 ft) (IR) |
| Illuminator On/Off Control |
Auto |
| Illuminator Number |
1 (IR LED) |
| Angle Adjustment |
Pan: 0° to 355°; Tilt: –5° to 80° |
Lens
| Max. Aperture |
F2.0 |
| Field of View |
2.8mm: H: 87.5°; V: 49.2°; D: 101.2° 3.6mm: H: 68.6°; V: 38.2°; D: 79.9° |
Intelligence
Video
| Video Compression |
H.265 |
| Video Frame Rate |
Main stream: 2304 × 1296@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Resolution |
3M (2304 × 1296); HD (640 × 360) |
| Video Bit Rate |
H.265: 80 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| WDR |
DWDR |
| Motion Detection |
Yes |
| Image Rotation |
0°/180° |
Audio
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
G.711a |
Network
| Wi-Fi |
IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G |
| Storage |
Micro SD card (up to 256 GB) |
| Management Software |
DMSS |
| Mobile Client |
iOS;Android |
Power
| Power Supply |
5 VDC |
| Power Consumption |
Basic: 1.9 W; Max.: 4.5 W (live + IR + PT rotation) |
Environment
| Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
Structure
| Casing Material |
Plastic |
| Product Dimensions |
Φ86 mm × 115 mm (Φ3.39" × 4.53") |
| Net Weight |
370 g (0.81lb) |
