描述

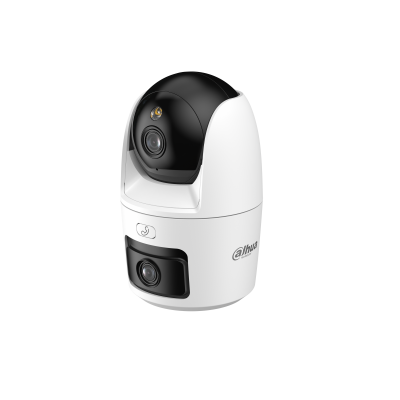

Hero A63 Dual 2K
3MP+3MP Fixed-focal Wi-Fi Dual-Lens Pan & Tilt Network Camera
Hero A63 Dual 2K 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Intelligence
| Human Detection | Yes |
|---|---|
| Pet Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2304 × 1296@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; AAC-LC |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/a/ac/ax 2.4 G & 5 G EIRP≤20 dBm@2400–2483.5 MHz (CE) EIRP≤23 dBm@5150–5250 MHz (CE) EIRP≤20 dBm@5250–5350 MHz (CE) EIRP≤27 dBm@5470–5725 MHz (CE) EIRP≤14 dBm@5725–5875 MHz (CE) |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
Function
| Abnormal Sound Alarm | Yes |
|---|---|
| Privacy Mode | Yes |
General
| Certifications | CE |
|---|---|
| Power Supply | 5 VDC |
| Power Consumption | Basic: 2.3 W; Max.: 5.2 W (pulling stream+ IR + PT rotation) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Casing Material | Plastic |
| Product Dimensions | Φ81.9 mm × 130.2 mm (Φ3.22" × 5.13") |
| Net Weight | 253 g (0.56 lb) |
