DAHUA_IPC-HDBW8242E-Z4FR

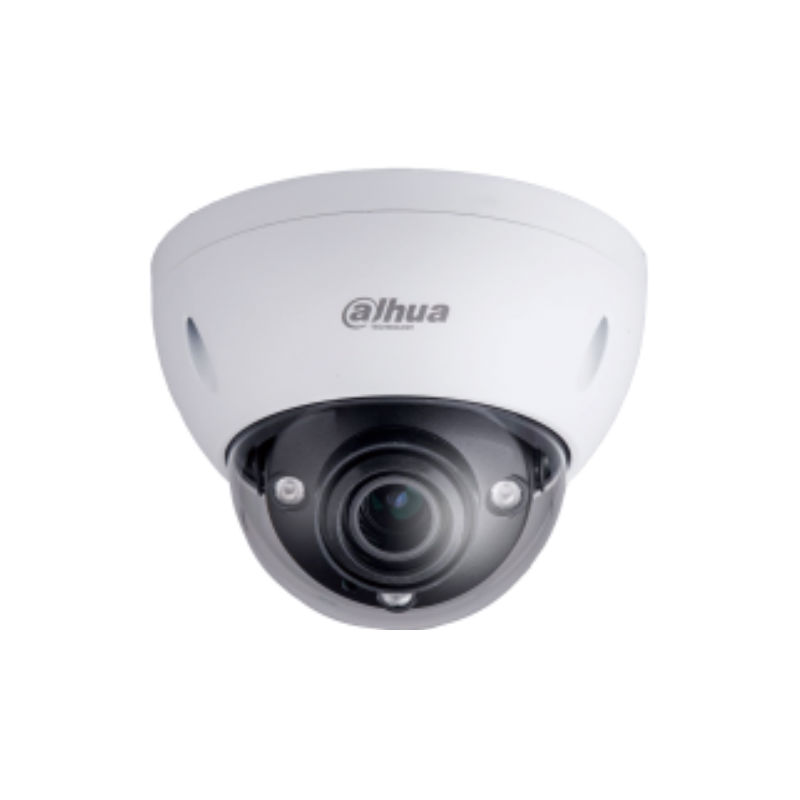

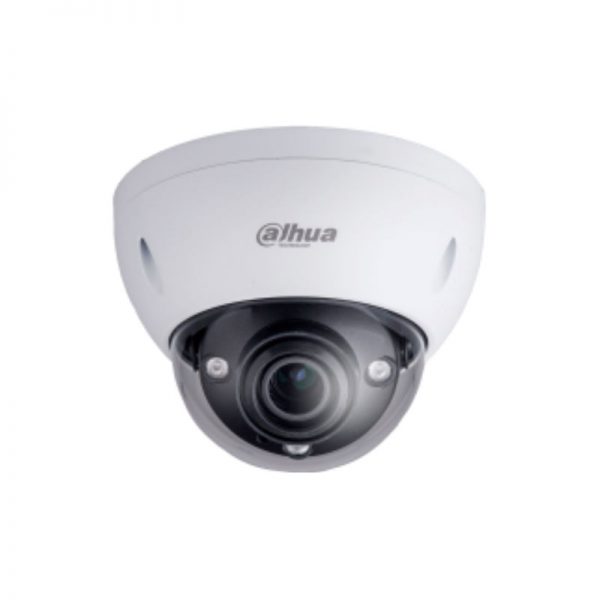

DAHUA IPC-HDBW8241E-Z5

2MP IR AI Dome Network Camera

> 1/2.8” 2Megapixel progressive scan CMOS

> H.265&H.264 triple-stream encoding

> 50/60fps@1080P(1920×1080)

> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> 7mm ~35mm motorized lens

> Micro SD memory, PoE+

> Max. IR LEDs Length 100m

分類: 標籤:

描述

Camera

Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels1920(H)x1080(V)
RAM/ROM1024MB/4096MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Minimum Illumination0.006Lux/F1.4 (Color,1/3s,30IRE)

0.05Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N RatioLess than 50dB
IR DistanceDistance up to 100m(328ft)
IR On/Off ControlAuto/Manual
IR LEDs3

Lens

Lens TypeMotorized
Mount TypeBoard-in
Focal Length7~35mm motorized
Max. ApertureF1.4
Angle of ViewH: 34.45° ~ 10.68°, V: 19.75° ~ 5.99°
Optical Zoom5x
Focus ControlMotorized
Close Focus Distance2m(6.56ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W124m(406ft)50m(164ft)25m(82ft)12m(39ft)
T428m(1404ft)171m(561ft)86m(282ft)43m(141ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation RangePan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚

Artificial Intelligence

People CountingLine crossing people counting, Region people counting, Loitering filter
Perimeter ProtectionTripwire, Intrusion(Human&Vehicle classification)

General Intelligence

Event TriggerMotion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General IntelligenceN/A

Video

CompressionH.265/H.264/H.264B/H.264H/MJPEG(sub stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability3 Streams
Resolution1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)
Frame RateMain Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~19/29fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps

Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(140dB)/ SSA
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization (EIS)Support
Smart IRSupport
DefogSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)

Audio

CompressionG.711a/ G.711Mu/ AAC/ G.726

Network

EthernetRJ-45 (100/1000Base-T)
ProtocolHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S

NMP;TLS

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge StorageNAS

Local PC for instant recording

Micro SD card 128GB

Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android

Certifications

CertificationsCE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface1 Port(For adjustment only)
Audio Interface1/1 channel In/Out
RS4851 port
Alarm1 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power SupplyDC12V, AC24V, PoE(802.3at)(Class 4)
Power ConsumptionDC12V:5.9W 15.7W(IR on)

AC24V: 5.7W 15.1W(IR on)

PoE:5.3W 14.1W(IR on)

Environmental

Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceIK10

Construction

CasingMetal
DimensionsΦ159.1mm*117.9mm
Net Weight1.06Kg (2.34lb)
Gross Weight1.28Kg (2.82lb)
