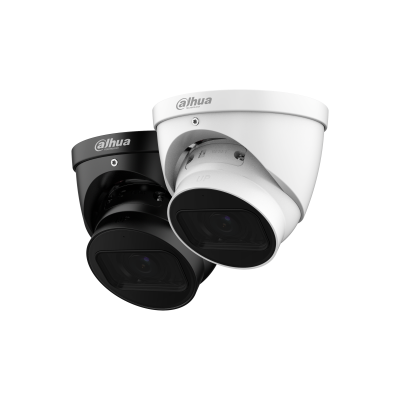

DAHUA IPC-HDW2241T-ZS

2MP IR Vari-focal Eyeball WizSense Network Camera

> 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply, easy for installation.

> IP67 protection.

> SMD Plus.

分類: , , , , 標籤: ,

描述

DAHUA IPC-HDW2241T-ZS

2MP IR Vari-focal Eyeball WizSense Network Camera

Specifications

Camera
Image Sensor1/2.8″ CMOS
Max. Resolution1920 (H) × 1080 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.002 lux@F1.5(Color,30IRE)
0.0002 lux@F1.5(B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance40 m (131.23 ft) (IR LED)
Illuminator On/Off ControlAuto; Manual
Illuminator Number2 (IR LED)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Lens Mountφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of ViewH: 108°–30°; V: 56°–17°; D: 131°–35°
Iris ControlFixed
Close Focus Distance0.8 m (2.62 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W44.1 m (144.69 ft)17.7 m

(58.07 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

T144.8 m (475.07 ft)57.9 m

(189.96 ft)

29.0 m

(96.14 ft)

14.5 m

(47.57 ft)

Intelligence
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+
Smart H.264+
Video Frame RateMain stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability2 streams
Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlManual;Auto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G.726; PCM
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host6 (Total bandwidth: 36 M)
StorageFTP;SFTP; Micro SD card (support max. 256 GB)
BrowserIE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientiOS; Android
Cyber SecurityVideo encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certification
CertificationsCE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power
Power Supply12 VDC/PoE (802.3af)
Power ConsumptionBasic: 1.5 W (12 VDC); 2.2 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 5.7 W (12 VDC); 6 W (PoE)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40°F to +140°F)
ProtectionIP67
Structure
Casing MaterialMetal
Product Dimensions108.3 mm × Φ122 mm (4.26″ × Φ4.80″)
Net Weight0.86 kg (1.90 lb)
Gross Weight0.69 kg (1.52 lb)
