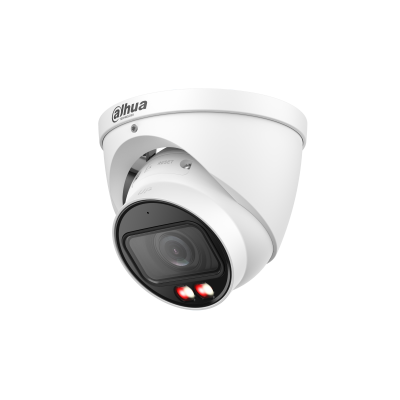

IPC-HDW2449T-ZS-IL
4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
IPC-HDW2449T-ZS-IL 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.9" CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 40 m (131.23 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
Lens
| Lens Type | Motorized vari-focal |
|---|---|
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 104°–29°; V: 54°–16°; D: 125°–34° |
| Iris Control | Fixed |
| Close Focus Distance | 0.1 m (0.33 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 64.0 m( 209.97 ft) 25.6 m( 83.99 ft) 12.8 m( 41.99 ft) 6.4 m ( 21.00 ft)T 210.0 m( 688.98 ft) 84.0 m( 275.59 ft) 42.0 m( 137.80 ft) 21.0 m ( 68.90 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
|---|---|
| SMD | SMD Plus |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
|---|---|
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 352 × 288@1 fps/352 × 240@1 fps *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Image Rotation | 0°/90°/180°/270° (supports 90°/270° with 2560 × 1440 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes, built-in Mic |
|---|---|
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;SSL/TLS1.2;AES 256 |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Power
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
|---|---|
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 1.7 W (12 VDC); 2.6 W (PoE); Max.: 7.7 W (12 VDC); 9.4 W (PoE) (H.265 + intelligence + WDR + warm light intensity) |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.69 kg (1.52 lb) |
| Gross Weight | 0.86 kg (1.90 lb) |
