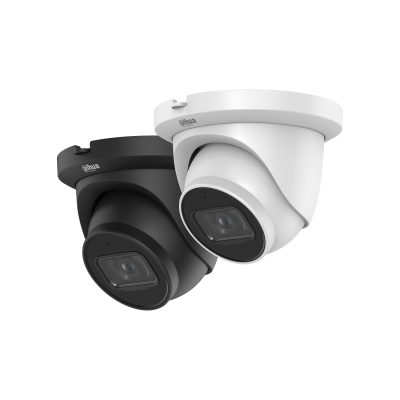

DAHUA IPC-HDW3249TM-AS-NI

2MP Full-color Fixed-focal Eyeball WizSense Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @30 fps

> H.265 codec, high compression rate, low bit rate

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Supports max. 256 G Micro SD card, built-in Mic

> 12V DC/PoE power supply

> IP67 protection

> SMD Plus

描述

DAHUA IPC-HDW3249TM-AS-NI

2MP Full-color Fixed-focal Eyeball WizSense Network Camera

Specifications

Camera
Image Sensor1/2.8”2Megapixel progressive CMOS
Max. Resolution1920 (H) × 1080 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0015 Lux@F1.0
S/N Ratio> 56 dB
Pan/Tilt/Rotation RangeHorizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View2.8 mm: Horizontal 107° × vertical 55° × diagonal 127°

3.6 mm: Horizontal 84° × vertical 45° × diagonal 99°

Iris TypeFixed
Close Focus Distance2.8 mm: 0.8 m (2.6 ft)

3.6 mm: 1.7 m (5.6 ft)

DORI DistanceLensDetectObserveRecognizeIdentify
2.8mm38.6 m

(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

3.6mm55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

Professional, Intelligent
Perimeter ProtectionTripwire, intrusion (Recognition of vehicle and people)
Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame RateMain stream (1920 × 1080 @ 1–25/30 fps)
sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)
third stream (1280 × 720 @ 1–25/30 fps)
Stream Capability3 streams
Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480);

CIF (352 × 288/352 × 240)

Bit Rate ControlCBR; VBR
Video Bit RateH.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
WDR120 dB
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image Rotation0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G726
Alarm
Alarm EventNo SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
InteroperabilityONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene self-adaptation (SSA)Yes
User/Host20 (Total bandwidth: 64M.)
StorageFTP; SFTP; Micro SD Card (support max. 256 G); NAS
BrowserIE: IE8; IE9; IE11
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE
Power Consumption< 4.1W
Environment
Operating Conditions-40°C to +60°C (-40°F to +140°F)/ less than 95%
Storage Conditions-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67
Structure
CasingInner core: Metal

Cover: Metal

Decoration ring: Plastic

Dimensions99.1 mm × Φ121.9 mm (3.9″ × Φ4.8″)
Net Weight480 g (1.05 lb)
Gross Weight660 g (1.45 lb)
