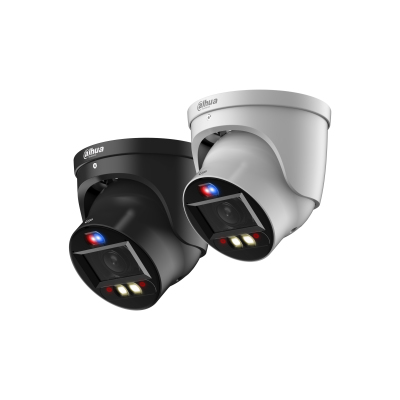

DAHUA IPC-HDW3549H-ZAS-PV

5 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera

> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk.

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 4.0.

> One-tap arming/disarming through alarm input

分類: , , , , 標籤:

描述

DAHUA IPC-HDW3549H-ZAS-PV

5 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera

Specifications

Camera
Image Sensor1/2.7″ CMOS
Max. Resolution2960 (H) × 1668 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio﹥ 56 dB
Illumination DistanceUp to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (warm light)

Illuminator On/Off ControlAuto; manual
Illuminator Number2 (IR LED)

2 (warm light)

Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ16
Focal Length2.7 mm–13.5 mm
Field of ViewH: 113°–36°

V: 57°–20°

D: 137°–40°

Iris TypeFixed
Close Focus Distance1.5 m (4.92 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W65.2 m (213.91 ft)26.1 m

( 85.63 ft)

13.0 m

(42.65 ft)

6.5 m

(21.33 ft)

T186.6 m (612.20 ft)74.6 m

( 244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)

Intelligent
IVS (Perimeter Protection)Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 4.0Less false alarm, longer detection distance
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Quick PickWith AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSAAdopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateMain stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability3 streams
Resolution5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–16384 kbps

H.265: 32 kbps–16384 kbps

Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptationYes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto; manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
Image StabilizationElectronic Image Stabilization (EIS)
Smart IlluminationYes
DefogYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes, built-in dual Mic
Built-in speakerYes, built-in speaker
Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Cyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI
User/Host20 (Total bandwidth: 72 M)
StorageFTP; SFTP; Micro SD card (Support max. 256 G); NAS
BrowserIE: IE8/9/11
Chrome
Firefox
Management SoftwareSmartPSS Lite; DSS; DMSS
Mobile PhoneiOS; Android
Certification
CertificationCE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply12 VDC/PoE (802.3af)
Power ConsumptionBasic: 4 W (12 VDC); 5 W (PoE)

Max. (pulling stream+warning light+speaker+warm light on): 8.5 W (DC12 V) 10.6 W (POE)

Environment
Operating Conditions–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity≤95%
Protection GradeIP67
Structure
CasingMetal
Dimensions127.6 mm × Φ122.0 mm (5.02″ × Φ4.80″)
Net Weight885 g (2.0 lb)
Gross Weight1060 g (2.3 lb)
