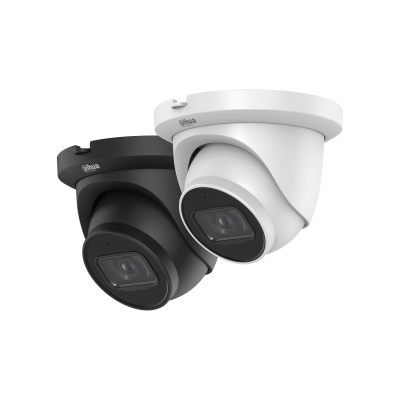

DAHUA IPC-HDW5842TM-ASE

8MP IR Fixed-focal Eyeball WizMind Network Camera

* The parameters and datasheets below can only be applied to 5842-ASE-S3 series.

> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840×2160) @25/30fps.

> Built-in IR LED, and the max. illumination distance is 50 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.

> 12 VDC/PoE power supply; ePoE.

> IP67 protection.

> SMD 3.0.

分類: , , , , 標籤: , ,

描述

DAHUA IPC-HDW5842TM-ASE

8MP IR Fixed-focal Eyeball WizMind Network Camera

Specifications

Camera
Image Sensor1/1.8″ CMOS
Max. Resolution3840 (H) × 2160 (V)
ROM4 GB
RAM2 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0008 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance50 m (164.04 ft) (IR)
Illuminator On/Off ControlAuto;Manual
Illuminator Number2 (IR LED)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM16
Focal Length2.8mm; 3.6mm; 6mm
Max. ApertureF1.6
Field of View2.8 mm: H: 111°; V: 59°; D: 131°
3.6 mm: H: 87°; V: 47°; D: 102°
6 mm: H: 55°; V: 30°; D: 64°
Iris ControlFixed
Close Focus Distance2.8 mm: 1.8 m
3.6 mm: 2.6 m
6 mm: 4.4 m
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm85.4 m (280.18 ft)34.2 m

(112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

3.6 mm106.0 m (347.77 ft)42.4 m

(131.11 ft)

21.2 m

(69.55 ft)

10.6 m

(34.78 ft)

6 mm164.8 m (540.68 ft)65.9 m

(216.21 ft)

33.0 m

(108.27 ft)

16.5 m

(54.13 ft)

Intelligence
EPTZYes
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object DetectionSmart abandoned object; smart missing object
SMD 3.0Less false alarm, longer detection distance
AI SSAYes
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat MapYes
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound DetectionYes
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateMain stream: 3840 × 2160@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–10 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability4 streams
Resolution3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1535; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–16384 kbps
H.265: 12 kbps–13568 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
MirrorYes
Privacy Masking8 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network PortRJ-45 (10/100 Enhancement Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI;
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 9 and later

Chrome: Chrome 102 and later

Firefox: Firefox 88 and later

Management SoftwareSmartPSS Lite; DSS; DMSS
Mobile ClientiOS;Android
Cyber SecurityConfiguration encryption; trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: wet contact, 5mA 3V–5V DC
Alarm Output1 channel out: wet contact, 300mA 12V DC
Power
Power Supply12 VDC/PoE (802.3af)/ePoE
Power ConsumptionBasic: 4.1 W (12 VDC); 5.2 W (PoE);
Max. (H.265+ WDR+ Intelligence on+IR on): 6.8 W (12 VDC); 8.8 W (PoE)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity10%–95% (RH), non-condensing
ProtectionIP67
Structure
Casing MaterialInner core: Metal
Cover: Metal
Decoration ring: Plastic
Quick install mounting plate: Metal
Product Dimensions99.1 mm × Φ121.9 mm (3.90″ × Φ4.80″)
Net Weight500 g (1.10 lb)
Gross Weight770 g (1.70 lb)
