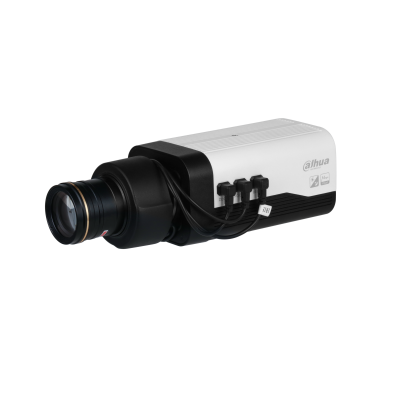

DAHUA IPC-HF5241F-ZE

DAHUA IPC-HF5241F-ZE

2MP Box WizMind Network Camera

* The parameters and datasheets below can only be applied to 5241-Z-S3 series.

> 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2MP (1920×1080) @25/30 fps.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 512 GB Micro SD card, built-in MIC.

> Supports P-iris, the camera can control the iris more precisely for better image effect.

> 24 VAC/12 VDC/PoE power supply; ePoE.

> SMD 3.0.

分類: , , , , 標籤: , ,

描述

DAHUA IPC-HF5241F-ZE

2MP Box WizMind Network Camera

Specifications

Camera
Image Sensor1/2.8″ CMOS
Max. Resolution1920 (H) × 1080 (V)
ROM4 GB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. IlluminationWith 10 mm–40 mm lens:
0.0006 lux@F1.2 (Color, 30 IRE)
0.0003 lux@F1.2 (B/W, 30 IRE)
S/N Ratio>56 dB
Lens
Lens MountC/CS
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object DetectionSmart abandoned object; smart missing object
SMD 3.0Less false alarm, longer detection distance
AI SSAYes
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat MapYes
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound DetectionYes
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateMain stream: 1080p@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability4 streams
Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–12032 kbps; H.265: 12 kbps–7424 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image StabilizationElectronic Image Stabilization (EIS)
DefogYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
MirrorYes
Privacy Masking8 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network PortRJ-45 (10/100 Enhancement Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI;
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 9 and later

Chrome: Chrome 102 and later

Firefox:Firefox 88 and later

Management SoftwareSmartPSS Lite; DSS; DMSS
Mobile ClientiOS; Android
Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
RS-4851 (baud rate range:1200 bps–115200 bps)
Audio Input2 channels (3.5mm JACK port)
Audio Output1 channel (3.5mm JACK port)
Alarm Input2 channels in: wet contact, 5mA 3V–5V DC
Alarm Output2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Analog Output1 channel (CVBS output: BNC)
Power
Power Supply12 VDC/24 VAC/PoE (802.3af)/ePoE
Power ConsumptionBasic: 4.8 W (12 VDC); 5.0 W (24 VAC); 5.6 W (PoE)
Max. (H.265+ WDR+ Intelligence on): 8.8 W (12 VDC); 10.5 W (24 VAC); 11.1 W (PoE)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity10%–95% (RH), non-condensing
Structure
Casing MaterialMetal
Product Dimensions161.6 mm × 86.8 mm × 74.0 mm (6.36″ × 3.42″ × 2.91″) (L × W × H)
Net Weight0.76 kg (1.68 lb)
Gross Weight0.98 kg (2.16 lb)
