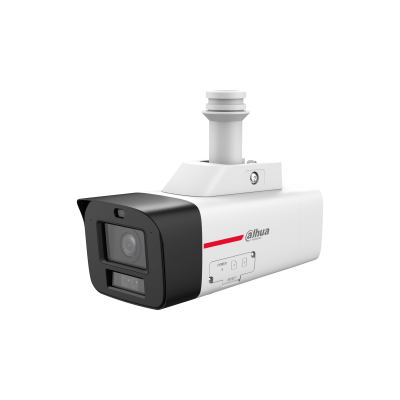

IPC-HFW2449DG-4G-ZAS-PV-PRO-LA
4MP WizColor Active Deterrence Vari-focal Bullet WizSense 4G Network Camera
IPC-HFW2449DG-4G-ZAS-PV-PRO-LA 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 1440 (V) |
| Illumination Distance | Up to 55 m (180.45 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 70° |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 107°–46°; V: 56°–26°; D: 130°–53° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2560 × 1440@(1–30 fps) |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| Day/Night | Yes (Switchable between colorful channel and B/W channel) |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | AAC |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Carrier Network System | FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66 TDD-LTE: B38/B40/B41 4G: Power class 3: 23 dBm ± 2.7 dB Applicable regions: Latin America |
| Storage | Micro SD card (max 512 GB) |
| Management Software | DSS |
| Mobile Client | iOS;Android |
Port
| Audio Input | 1 channel (RCA port) |
|---|---|
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: wet contact, max load 300 mA 12 VDC |
General
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
|---|---|
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Performance Mode (720p@15 fps; 4G streaming): 2 W AOV Mode (720p@1 fps; 24/7 recording): 0.32 W Standby Mode (no recording): 0.12 W |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Camera Button | Reset Button |
| Casing Material | Metal + plastic |
| Product Dimensions | 128.47 mm × 300.88 mm × 222.76 mm (5.06" × 11.85" × 8.77") (L × W × H) |
| Net Weight | 2 kg (4.41 lb) |
