DAHUA_IPC-HFW7442H-Z

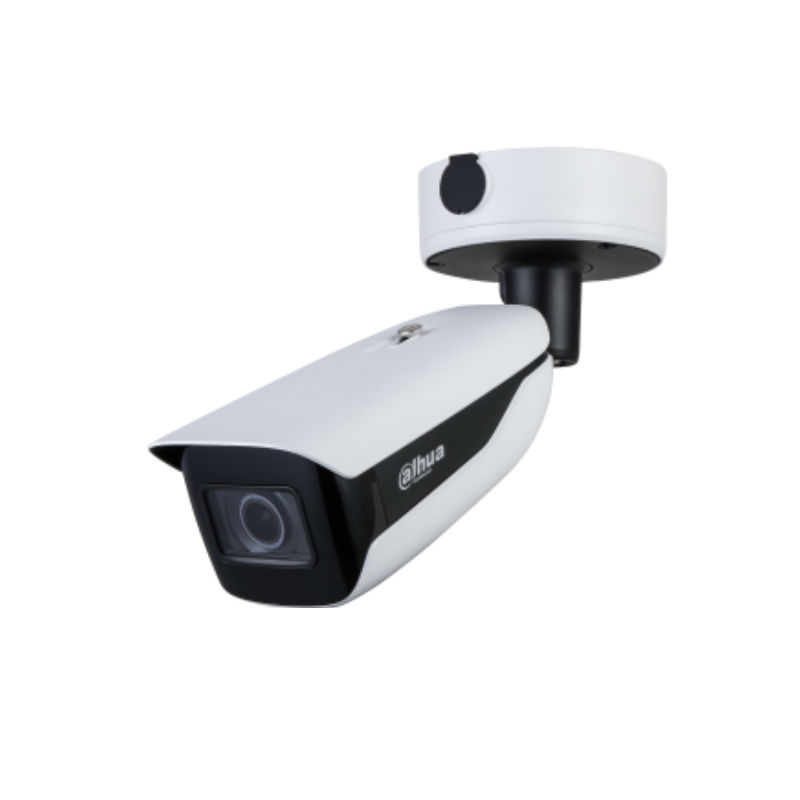

DAHUA IPC-HFW7442H-Z4FR

4MP AI IR Bullet Network Camera

> 4MP, 1/1.8″ CMOS image sensor, low illuminance, high image definition

> Max outputs 4MP (2688×1520) @50 fps/60 fps

> H.264&H.265 coding, high compression ration

> Wide dynamic, day/ night, 3D noise reduction, AWB, HLC, BLC

> ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> With deep learning algorithm, it supports people counting, face recognition, perimeter protection etc

> 24V AC/PoE/12V DC power support

> Five streams for three-channel HD video

> IP67, IK10 protection grade

Category:

Description

Camera
Image Sensor 1/1.8” 4Megapixel progressive CMOS
Effective Pixels 2688 (H) × 1520 (V)
ROM 16 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.001 Lux@F1.6
IR Distance Distance up to 120m (393.70 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 4 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens Type Motorized vari-focal
Mount Type Module interface
Focal Length 8 mm–32 mm
Max. Aperture F1.6
Field of View Horizontal: 40° (W)–15° (T)

Vertical: 23° (W)–9° (T)

Diagonal: 46° (W)–18° (T)
Iris Type Auto aperture
Close Focus Distance W: 2.5 m (8.20 ft)
T: 6 m (19.69 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 151 m (495.4 ft) 60.7 m (199.15 ft) 30.3 m (99.41 ft) 15.1 m (49.54 ft)
T 400 m (1312.34 ft) 160 m (524.93 ft) 80 m (262.47 ft) 40 m (131.23 ft)

Smart event
General IVS Analytics Abandoned object, moving object

Professional, intelligent
Perimeter Protection Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Recognition Face recognition, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard

Face matting setting: face, single inch photo

Two snapshot strategies: priority snapshot, recognition

Face angle filter Priority time setting Management of 5 group face libraries Single person register and person register in batch Face recognition and similarity setting

Max supports face contrast in face library with 200,000 faces
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
People Counting People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec Yes
Video Frame Rate Main Stream: 2688 × 1520 (1–50/60 fps)
sub stream 1: 704 × 576 (1–25/30 fps)
sub stream 2: 1920 × 1080 (1–25/30 fps)
sub stream 3: 1920 × 1080 (1–25/30 fps)
sub stream 4: 704 × 576 (1–25/30 fps)
Stream Capability 5 streams
Resolution 4M (2688 × 1520), 3M (2304 × 1296), 1080 (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32–10240 kbps

H.265: 12–10240 kbps
Day/Night ICR switch
BLC Yes
WDR 140 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional Custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Electronic Image Stabilization(EIS) Yes
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.)
Mirror Yes
Privacy Masking 4 areas

Audio
Audio Compression G.711a; G.711Mu; G726; AAC; G.723

Network
Network RJ-45 (10/100/1000 Base-T)
Protocol HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P
Scene self-adaptation Yes
User/Host 20
Edge Storage FTP; Micro SD card (256 G); NAS; SFTP
Browser IE: Versions later than IE9

Chrome: Versions later than Chrome 42

Firefox: Versions later than Firefox 48.0.2
Management Software Smart PSS, DSS PRO, NVR, IVSS, DMSS
Mobile Phone IOS, Android

Certification
Certifications CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port
RS-485 1 (Bit rate: 1200 bps–115200 bps)
Audio Input Audio Interface: 1/1 channel In/Out
Audio Output
Alarm Input 3 channel In: 5mA 5V DC

2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output

Power
Power Supply 12V DC/24V AC/POE
Power Consumption <17.3W

Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity ≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67, IK10

Structure
Casing Metal + Plastic
Dimensions 340.1 mm × 108.5 mm × 92.9 mm (13.39″ × 4.27″ × 3.66″) (L × W × H)
Net Weight 1600g (3.53 lb)
Gross Weight 2400g (5.29 lb)
