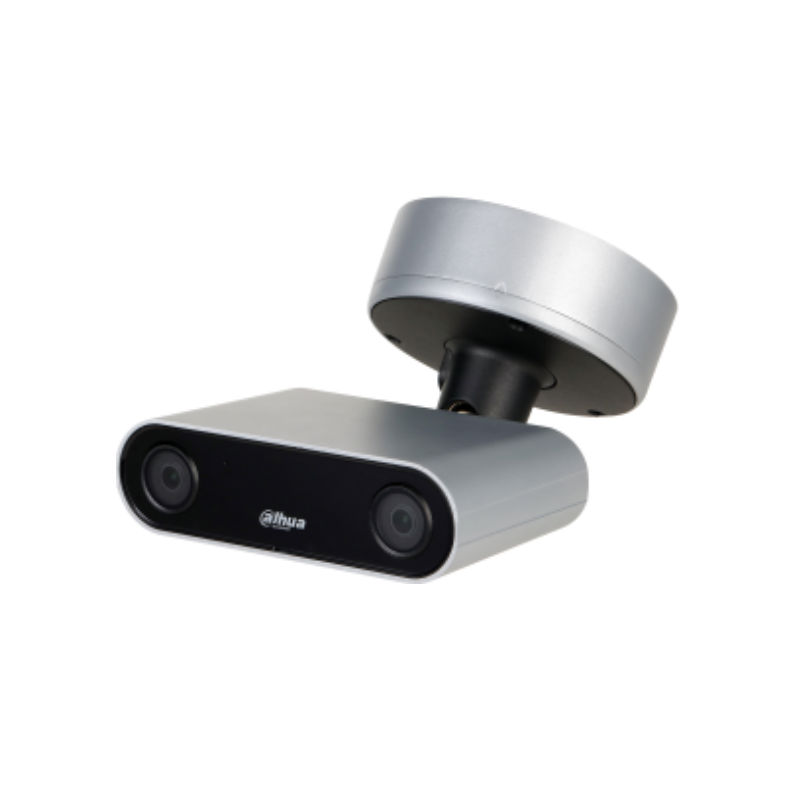

2MP Dual-Lens Stereo Vision AI Network Camera

> Two 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 25fps/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> 3/2 Alarm in/out, 1/1 audio in/out, build-in MIC
> Max. IR LEDs Length 40m
> Micro SD memory 256GB, IP67, PoE
> Five Types Stereo Analysis: Support fall detection,strand detection,people approach, people NO. error detection, violence detection



Image Sensor Two 1/2.8”2Megapixel progressive scan CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 4096MB/4096MB
Scanning System Progressive
Minimum Illumination 0.003Lux/F1.4 (Color,1/3s,30IRE)

0.03Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

IR Distance Distance up to 40m(131ft)
IR On/Off Control Auto/ Manual


Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm, 6mm)
Max. Aperture F1.4
Angle of View H: 111° (86°,54°), V:62° (46°,30°),
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.7m (1.2m,2.4m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 29m(95ft) 16m(52ft) 6m(20ft) 3m(10ft)
3.6 mm 43m(141ft) 17m(56ft) 9m(30ft) 4m(13ft)
6 mm 50m(164ft) 20m(66ft) 10m(33ft) 5m(16ft)


Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~64˚; Rotation:0˚~355˚

Artificial Intelligence

Behavior analysis Fall detection, Strand detection, People approach, People NO. error detection, Violence detection

General Intelligence

Event Trigger Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

General Intelligence Tripwire, Intrusion, Object Abandoned/Missing, Heat Map


Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/ CIF(352×288/342×240)
Frame Rate Main Stream: 2MP (1~25/30fps)
Sub Stream 1: D1 (1 ~ 25/30fps)
Sub Stream 2: 2MP (1~25fps/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 1792~ 9216Kbps

H.265: 512~ 5632Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off / On (4 Area, Rectangle)


Compression G.711a/ G.711Mu/ AAC/ G.726


Ethernet RJ-45 (100/1000Base-T)


NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability ONVIF Profile G&S, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 256GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android


Certifications CE (EN 60950:2000)


FCC: FCC Part 15 Subpart B


Video Interface 1 port (For Adjustment Only)
Audio Interface 1/1 channel In/Out (RCA), Built-in Mic
RS485 1 port
Alarm 3 channel In: 5mA 5VDC

2 channel Out: 300mA 12VDC


Power Supply DC12V±30%, PoE (IEEE 802.3af)(Class 0)
Power Consumption < 8.77W


Operating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A


Casing Metal
Dimensions 176.9mmx230.9mmx50.4mm (6.97″x9.09″x1.99″)
Net Weight 1.9kg (4.2lb)
Gross Weight 2.3kg (5.1lb)
