描述

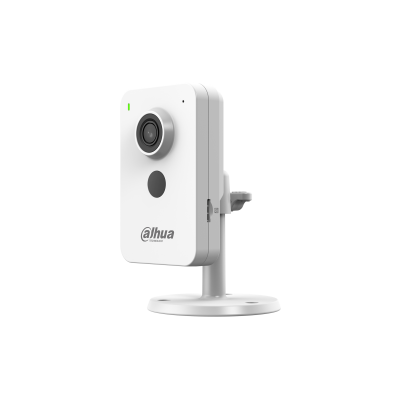

IPC-K1230K-STW
2MP Compact Wi-Fi & PoE Camera
IPC-K1230K-STW 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.7" CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
| Illuminator Number |
1 (IR LED) |
| Angle Adjustment |
Pan: 0° to 360° Tilt: -10° to 100° |
| Lens Type |
Fixed-focal |
| Focal Length |
2.8 mm; 3.6 mm |
| Max. Aperture |
F2.0 |
| Field of View |
2.8 mm: H: 101°; V: 54°; D: 119° 3.6 mm: H: 82°; V: 45°; D: 97° |
Intelligence
Audio and Video
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Video Frame Rate |
Main stream: 1920 × 1080@(1-25/30 fps) Sub stream: 640 × 360@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate |
H.264: 24 kbps–6144 kbps H.265: 9 kbps–6144 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| WDR |
Yes |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Image Rotation |
0°/180° |
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
PCM; G.711a; G.711Mu |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Wi-Fi |
IEEE 802.11b/g/n/ax 2.412–2.472 GHz, 2.4 G |
| Wi-Fi Pairing |
Bluetooth pairing |
| Storage |
Micro SD card (support max. 256 GB) |
| Management Software |
Smart PSS Lite;DMSS |
| Mobile Client |
iOS;Android |
Function
General
| Certifications |
CE |
| Power Supply |
12 VDC/PoE |
| Power Consumption |
Basic: 1.92 W (12 VDC); 2.81 W (PoE) Max.: 4.14 W (12 VDC); 5.14 W (PoE) |
| Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Camera Button |
Reset button |
| Casing Material |
Plastic |
| Product Dimensions |
64 mm × 100 mm × 34 mm (2.52" × 3.94" × 1.34") (L × W × H) |
| Net Weight |
0.11 kg (0.24 lb) |
