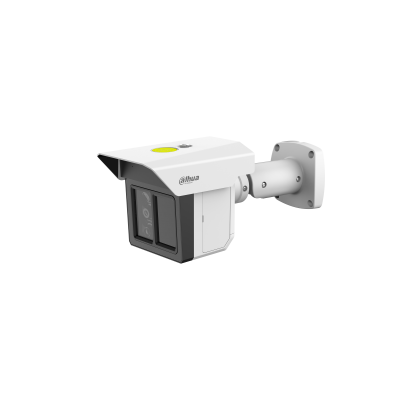

IPC-MFW5241T2-E3-ASE-ATC
3 x 2MP Anti-Corrosion Triple-Sight Perimeter Protection Bullet WizMind Network Camera
IPC-MFW5241T2-E3-ASE-ATC 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Channel 1-3: 1/2.8" CMOS |
|---|---|
| Max. Resolution | Channel 1-3: 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto; Manual 1/3 s–1/100,000 s |
| Min. Illumination | Channel 1: 0.0007 [email protected] (Color, 30 IRE); 0.0004 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on); Channel 2: 0.004 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on); Channel 3: 0.008 [email protected] (Color, 30 IRE); 0.0008 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm: Up to 120 m (393.70 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 8 (IR LED) |
| Angle Adjustment | Triaxial adjustment: Pan: 0° to 360°; Tilt: 0° to 70°; Rotation: 0° to 360°; Micro PTZ: Tilt: –5° to 10° |
| Gradienter | The horizontal gradient is visualized, simplifying installation. |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm |
| Max. Aperture | Channel 1: F1.6 Channel 2: F2.0 Channel 3: F2.8 |
| Field of View | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm: Channel 1: H: 85.9°; V: 46.7°; D: 100.4° Channel 2: H: 25.7°; V: 14.4°; D: 29.5° Channel 3: H: 13°; V: 7.4°; D: 14.9° |
| Iris Control | Channel 1-3: Fixed |
| Close Focus Distance | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm: Channel 1: 1.1 m (3.61 ft) Channel 2: 8.6 m (28.22 ft) Channel 3: 19.6 m (64.30 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentifyChannel 1 53.7 m( 176.18 ft) 21.5 m( 70.54 ft) 10.7 m( 35.10 ft) 5.4 m ( 17.72 ft)Channel 2 172.4 m( 565.62 ft) 69.0 m( 226.38 ft) 34.5 m( 113.19 ft) 17.2 m ( 56.43 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool |
Intelligence
| Intelligence Notes | Channel 1–3: Perimeter protection *Alarms are output through channel 1. |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) The maximum detection distance in the daytime can reach up to 140 meters. *Result based on standard setup and test environment |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
|---|---|
| Video Frame Rate | Channel 1-3: Main stream: 1920 × 1080@(1–25 fps) sub stream: 704 × 576@(1–25 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams |
| Resolution | Channel 1-3: 1080p (1920 × 1080) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | Channel 1-3: H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Illumination By Area | Yes, 6 areas |
| Smart Illumination | Yes |
| Defog | Yes |
| Privacy Masking | 8 areas |
Audio
| Built-in MIC | Yes, built-in dual Mic |
|---|---|
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; security exception; scene changing; audio detection; voltage detection; external alarm |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE 9 and later; Edge: Edge 79 and later; Chrome: Chrome 102 and later; Firefox: Firefox 88 and later |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Port
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: wet contact, max load 300 mA 12 VDC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
Power
| Power Supply | 12 VDC; PoE |
|---|---|
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.3 W (12 VDC); 5.5 W (PoE); Max.: 22.1 W (12 VDC); 23.6 W (PoE) (intelligence on + IR on + speaker on) |
| ePoE | Yes |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-Corrosion Protection | NEMA 4X |
| Anti-corrosion Level | Moderate Protection *The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 368 mm × 124.0 mm × 140.4 mm (14.49" × 4.88" × 5.53") (L × W × H) |
| Net Weight | 2.15 kg (4.74 lb) |
| Gross Weight | 2.72 kg (6.00 lb) |
