描述

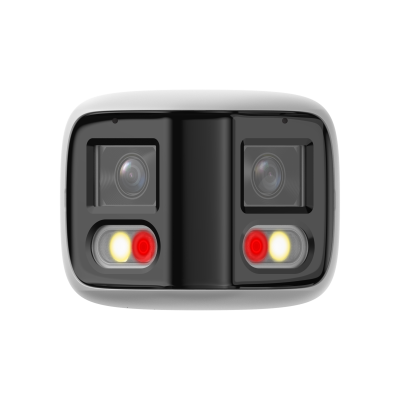

IPC-PFW2849S-A180-S-PV
2x4MP Duo Splicing Fixed-focal Bullet WizSense Network Camera
IPC-PFW2849S-A180-S-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.7" CMOS (×2) |
|---|---|
| Max. Resolution | 4096 (H) × 1860 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: Up to 25 m (82.02 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 360° Tilt: –20° to 90° Rotation: 0° to 360° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: H: 180°; V: 86° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentify2.8 mm 50.6 m( 166.01 ft) 20.2 m( 66.27 ft) 10.1 m( 33.14 ft) 5.1 m ( 16.73 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence
| EPTZ | Enlarge and track the targets of intelligent alarms |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 3.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps) Sub stream: 1200 × 536@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | 8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 536; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 6 kbps–16384 kbps; H.265: 6 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Privacy Masking | 4 areas |
Audio
| Built-in MIC | Yes, built-in dual Mic |
|---|---|
| Built-in Speaker | Yes, built-in speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
|---|
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE 8 and later; Chrome; Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
Function
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
|---|---|
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms Sound: 0–100 Play times can be set from 1 to 10 |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Power
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
|---|---|
| Power Consumption | Basic: 4.7 W (12 VDC); 6.2 W (PoE); Max.: 9.8 W (12 VDC); 11.9 W (PoE) (H.265 + WDR + light on + intelligence on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤ 95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤ 95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 183.1 mm × 99.0 mm × 78.0 mm (7.21" × 3.90" × 3.07") (L × W × H) |
| Net Weight | 0.66 kg (1.46 lb) |
| Gross Weight | 0.83 kg (1.83 lb) |
