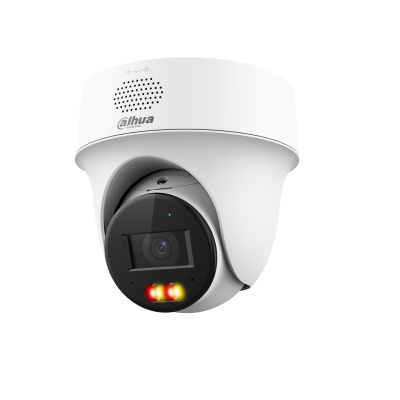

IPC-PT1239H-PV
2MP Smart Dual Light Active Deterrence Network PT Camera
IPC-PT1239H-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Pixel |
2 MP |
| Max. Resolution |
1920 (H) × 1080 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Electronic Shutter Speed |
1 s–1/30,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on); |
| Illumination Distance |
30 m (98.43 ft) (IR + warm light-only warm light is enabled) 30 m (98.43 ft) (IR + warm light-only IR is enabled) |
| Illuminator On/Off Control |
Manual; auto; off |
| Illuminator Number |
2 (IR + warm light) |
Lens
| Focal Length |
2.8 mm; 3.6 mm |
| Max. Aperture |
F1.6 |
| Field of View |
2.8 mm: H:103°;V:55°;D:123°3.6 mm: H: 86°; V: 46°; D: 103° |
| Close Focus Distance |
2.8 mm: 0.8 m (2.62 ft)3.6 mm: 1.2 m (3.93 ft) |
| Iris Control |
Fixed |
| DORI Distance |
LensDetectObserveRecognizeIdentify2.8 mm 38.6 m( 126.64 ft) 15.4 m( 50.52 ft) 7.7 m( 25.26 ft) 3.86 m ( 12.66 ft)3.6 mm 49.6 m( 162.73 ft) 19.8 m( 64.96 ft) 9.9 m( 32.48 ft) 4.96 m ( 16.27 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to +90° |
| Manual Control Speed |
Pan: 0.1°–37.66°/s; Tilt: 0.1°–32.61°/s |
| Preset Speed |
Pan: 0.1°–37.19°/s; Tilt: 0.1°–30.82°/s |
| Preset |
50 |
| Power-off Memory |
Yes |
| Idle Motion |
Preset;home position(only supports setting on DMSS) |
| PTZ Locked |
YES |
Smart Event
| IVS |
Yes |
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Active Deterrence
| Light Warning |
Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning |
supports importing custom voice content;Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability |
2 streams |
| Resolution |
1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240) |
| Video Frame Rate |
Main stream: 1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: 640 × 360/QVGA@(1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H264: 16 kbps–8,192 kbps H265: 6 kbps–6,400 kbps |
| Day/Night |
Auto (ICR); Color/B/W |
| BLC |
Yes |
| WDR |
120 dB |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR; 3D NR |
| Motion Detection |
Yes |
| Region of Interest (RoI) |
Yes |
| Defog |
Electronic |
| Image Rotation |
180° |
| Privacy Masking |
4 area |
| S/N Ratio |
≥55 dB |
Audio
| Audio Compression |
PCM; G.711A; G.711Mu; G.726 |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter |
| Interoperability |
CGI;SDK;ONVIF (Profile S & Profile T) |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
FTP |
| Browser |
IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software |
Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player |
| Mobile Client |
iOS;Android |
Function
Certification
| Certifications |
EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035; |
Port
| Audio Input |
1 channel (built-in mic) |
| Audio Output |
1 channel (built-in speaker) |
| Alarm Linkage |
Capture; preset; recording; audio; sending email |
| Alarm Event |
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; |
Power
| Power Supply |
12 VDC, 1.0 A ± 10% PoE (802.3af) |
| Power Consumption |
12 VDC, 1.0 A ± 10%: Basic: 3 W; Max: 11 W (illuminator+speaker+PTZ operation) PoE（802.3af） Basic: 4 W; Max: 12 W (illuminator+speaker+PTZ operation) |
| Power Adapter |
Optional |
Environment
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
128.4 mm × Φ127.3 mm (5.06" × Φ5.01") |
| Net Weight |
0.41 kg (0.9 lb) |
| Gross Weight |
0.5 kg (1.1 lb) |
Filter
| Remarks |
* The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model |
