IPC-PT1339DA1-SW-PV

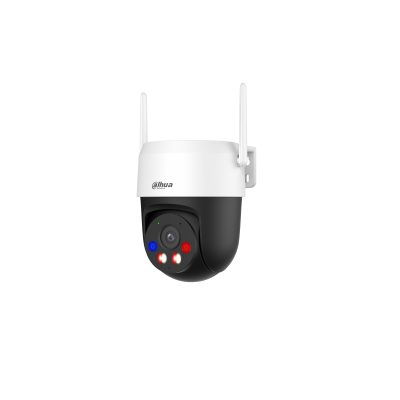

3MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
IPC-PT1339DA1-SW-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2304 (H) × 1296 (V) |
| Min. Illumination |
0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number |
2 (Multi-core (IR + warm) light) |
| Angle Adjustment |
Pan: 0° to 345° Tilt: 0° to 90° |
| Lens Type |
Fixed-focal |
| Focal Length |
4.0 mm |
| Max. Aperture |
F2.0 |
| Field of View |
H: 83°; V: 45°; D: 98° |
Intelligence
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Audio and Video
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Video Frame Rate |
Main stream: 2304 × 1296@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| WDR |
DWDR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Image Rotation |
0°/180° |
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
G.711a; G.711Mu; PCM |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE) |
| Wi-Fi Pairing |
Bluetooth pairing |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage |
Micro SD card (support max. 256 GB) |
| Management Software |
Smart PSS Lite; DSS; DMSS |
| Mobile Client |
Android;iOS |
Function
General
| Certifications |
CE |
| Power Supply |
12 VDC (±30%) |
| Power Consumption |
Basic: 1.8 W (12 VDC) Max.: 13.8 W (12 VDC) (illuminator intemsity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR) |
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Protection |
IP66 |
| Camera Button |
Reset button |
| Casing Material |
Plastic |
| Product Dimensions |
125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H) |
| Net Weight |
0.4 kg (0.88 lb) |
