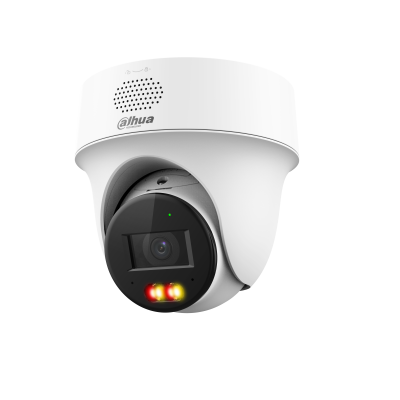

IPC-PT1439H-PV
4MP Smart Dual Light Active Deterrence Network PT Camera
IPC-PT1439H-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Pixel |
4 MP |
| Max. Resolution |
2560 (H) × 1440 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Electronic Shutter Speed |
1 s–1/30,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on); |
| Illumination Distance |
30 m (98.43 ft) (IR + warm light-only warm light is enbaled) 30 m (98.43 ft) (IR + warm light-only IR is enbaled) |
| Illuminator On/Off Control |
Manual; auto; off |
| Illuminator Number |
2 (IR + warm light) |
Lens
| Focal Length |
3.6 mm; 2.8 mm |
| Max. Aperture |
F1.6 |
| Field of View |
2.8 mm: H: 94°; V: 51°; D: 110°3.6 mm: H: 78°; V: 42°; D: 92° |
| Close Focus Distance |
2.8 mm: 1.2 m (3.93 ft)3.6 mm: 1.5 m (4.92 ft) |
| Iris Control |
Fixed |
| DORI Distance |
LensDetectObserveRecognizeIdentify2.8 mm 56.0 m( 183.73 ft) 22.4 m( 73.49 ft) 11.2 m( 36.75 ft) 5.6 m ( 18.37 ft)3.6 mm 72.0 m( 236.22 ft) 28.8 m( 94.49 ft) 14.4 m( 47.24 ft) 7.7 m ( 25.26 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to +90° |
| Manual Control Speed |
Pan: 0.1°–37.66°/s; Tilt: 0.1°–32.61°/s |
| Preset Speed |
Pan: 0.1°–37.19°/s; Tilt: 0.1°–30.82°/s |
| Preset |
50 |
| Power-off Memory |
Yes |
| Idle Motion |
Preset |
Smart Event
| IVS |
Yes |
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Active Deterrence
| Light Warning |
Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning |
Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10. |
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability |
1 stream |
| Resolution |
4M (2560 × 1440);1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240) |
| Video Frame Rate |
Main stream: 4M/1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: 640 × 360/QVGA@(1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H264: 16 kbps–8,192 kbps H265: 6 kbps–8,192 kbps |
| Day/Night |
Auto (ICR); Color/B/W |
| BLC |
Yes |
| WDR |
120 dB |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR; 3D NR |
| Motion Detection |
Yes |
| Region of Interest (RoI) |
Yes |
| Defog |
Electronic |
| Image Rotation |
180° |
| S/N Ratio |
≥55 dB |
Audio
| Audio Compression |
PCM; G.711A; G.711Mu; G.726 |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter |
| Interoperability |
CGI;SDK;ONVIF (Profile S & Profile T) |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
FTP |
| Browser |
IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software |
Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player |
| Mobile Client |
iOS;Android |
Function
Certification
| Certifications |
EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035; |
Port
| Audio Input |
1 channel (built-in mic) |
| Audio Output |
1 channel (built-in speaker) |
| Alarm Linkage |
Capture; preset; recording; audio; sending email |
| Alarm Event |
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; |
Power
| Power Supply |
12 VDC, 1.0 A ± 10% PoE (802.3af) |
| Power Consumption |
12 VDC, 1.0 A ± 10%: Basic: 3 W; Max: 11 W (illuminator+speaker+PTZ operation) PoE（802.3af） Basic: 4 W; Max: 12 W (illuminator+speaker+PTZ operation) |
| Power Adapter |
Optional |
Environment
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +122 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
128.4 mm × Φ127.3 mm (5.06" × Φ5.01") |
| Net Weight |
0.41 kg (0.9 lb) |
| Gross Weight |
0.5 kg (1.1 lb) |
