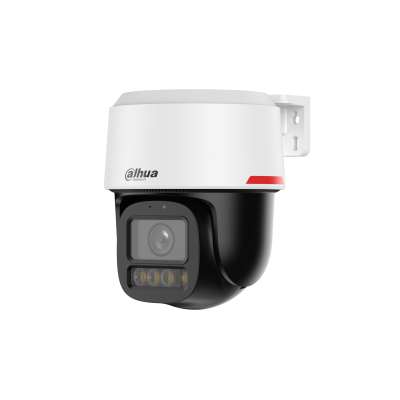

IPC-PT2249C1-S-PV-PRO
2MP WizColor Active Deterrence WizSense Network PT Camera
IPC-PT2249C1-S-PV-PRO 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Pixel |
2MP |
| Max. Resolution |
1920 (H) × 1080 (V) |
| ROM |
256 MB |
| RAM |
256 MB |
| Electronic Shutter Speed |
1 s–1/100,000 s |
| Scanning System |
Progressive |
| Min. Illumination |
0.0005 [email protected] (Color, 30 IRE); 0 lux (Illuminator on); |
| Illumination Distance |
3.6 mm: 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control |
Auto; Manual; Off |
| Illuminator Number |
4 (Warm light) |
Lens
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
3.6 mm: H: 89.5°; V: 51°; D: 96° |
| Close Focus Distance |
3.6 mm: 1.7 m (5.58 ft) |
| DORI Distance |
LensDetectObserveRecognizeIdentify3.6 mm 51.4 m( 168.73 ft) 20.3 m( 66.65 ft) 10.3 m( 33.75 ft) 5.1 m ( 16.87 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
PTZ
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to 90° |
| Manual Control Speed |
Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed |
Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s |
| Preset |
80 |
| Tour |
8 (up to 6 presets per tour; the stay duration for each preset is 60 to 360 sec and tour interval is 900 to 3,600 sec) |
| Power-off Memory |
Yes |
| Idle Motion |
Preset;Tour |
Smart Event
| IVS |
Tripwire; Intrusion |
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Intelligence
| Smart Tracking |
Auto Tracking Lite |
| SMD |
SMD 3.0 |
Active Deterrence
| Light Warning |
Warm light warning Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning |
Offers 3 sound alarm. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability |
2 streams |
| Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704×576);VGA(640 × 480); CIF(352 × 288) |
| Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 8 kbps–6,400 kbps H.265: 3 kbps–3,840 kbps |
| Day/Night |
Color/B/W |
| BLC |
Yes |
| WDR |
120 dB |
| HLC |
Yes |
| White Balance |
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control |
Auto; Manual; Gain Priority |
| Noise Reduction |
2D NR; 3D NR |
| Motion Detection |
Yes |
| Region of Interest (RoI) |
Yes |
| Defog |
Electronic |
| Digital Zoom |
16× |
| Image Rotation |
180° |
| S/N Ratio |
≥55 dB |
Audio
| Audio Compression |
PCM, G.711A, G.711Mu |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;FTP;ICMP;IGMP;ARP;RTCP;RTP;RTMP |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method |
Unicast/Multicast |
| User/Host |
20 (total bandwidth: 64 M) |
| Storage |
Micro SD card (Up to 512 GB); FTP |
| Browser |
IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software |
DMSS;NVR |
| Mobile Client |
iOS;Android |
Function
Certification
Port
| Audio Input |
1 channel (built-in mic) |
| Audio Output |
1 channel (built-in speaker) |
| Alarm Linkage |
Capture; recording; audio; light |
| Alarm Event |
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power
| Power Supply |
12 VDC, 1A ± 10% PoE (802.3af) |
| Power Consumption |
PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ) |
| Power Adapter |
Optional |
Environment
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight |
0.8kg (1.76 lb) |
| Gross Weight |
1.2kg (2.64 lb) |
