描述

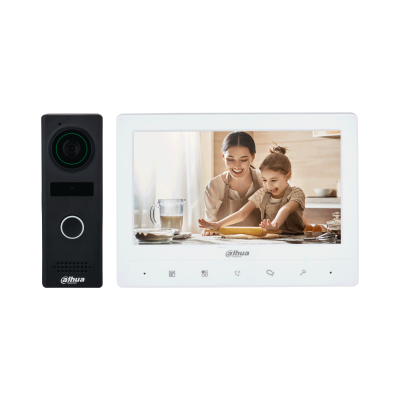

KTA02M
Video Intercom KIT
KTA02M 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
DHI-VTH1020J
System
Basic
| Display |
7.0" TFT |
| Resolution |
1024 × 600 |
| Indicator Light |
1 indicator light; Green: Power on |
Function
| Communication Method |
Analog |
Performance
General
| Color |
White |
| Power Supply |
DC 12V/1A |
| Power Adapter |
Included |
| Installation |
Surface mount |
| Certifications |
CE/FCC |
| Accessory |
Bracket (included) 5 m (16.40 ft) cable (included) |
| Dimensions |
133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70") |
| Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
| Operating Humidity |
10%RH–95%RH |
| Power Consumption |
≤ 2W (standby) ≤ 5W (working) |
| Net Weight |
0.25 kg (0.55 lb) |
| Gross Weight |
0.48 kg (1.05 lb) |
DHI-VTO1000JM
System
Basic
| Camera |
1/4" 1.3 MP CMOS |
| Field of View |
Horizontal: 70° Vertical: 40° |
| WDR |
DWDR |
| Illuminator Type |
Auto IR |
| Day/Night |
ICR auto switch |
| Audio Input |
1 channel to the microphone; pickup distance 0.5 m |
| Audio Output |
1 channel to the speaker |
| Indicator Light |
1 indicator light; Green: Power on |
Function
| Communication Method |
Analog |
| Unlock Mode |
Remote unlock |
Performance
Port
| Unlock Button |
1 |
| Door Status Detection |
1 |
General
| Color |
Black |
| Power Supply |
Powered by indoor monitor |
| Installation |
Surface mount |
| Certifications |
CE/FCC |
DHI-VTO1000JM
| Accessory |
Rain cover (included) 5 m cable (included in kit) |
| Dimensions |
131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33") |
| Protection Grade |
IK07;IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Operating Humidity |
10%RH–95%RH |
| Power Consumption |
≤ 1W (standby) ≤ 3W (working) |
| Net Weight |
0.18 kg (0.40 lb) |
| Gross Weight |
0.40 kg (0.84 lb) |
