描述

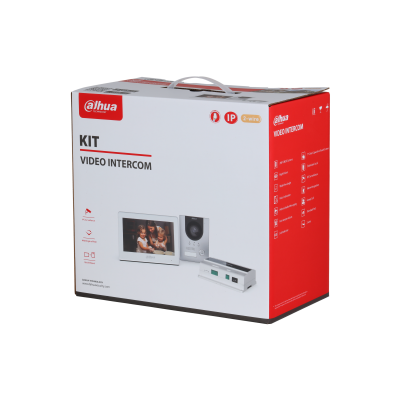

KTD01
Video Intercom KIT
KTD01 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System(VTO)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux Operation System |
| Button Type |
Mechanical |
| Interoperability |
ONVIF; CGI |
| Network Protocol |
SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 |
Basic(VTO)
| Camera |
1/2.9" 2 MP CMOS |
| Field of View |
H: 168.6°; V: 87.1°; D: 176.7° |
| WDR |
120 dB |
| Noise Reduction |
3D NR |
| Video Compression |
H.265; H.264 |
| Video Resolution |
Main stream: 720p; WVGA; D1; CIF Sub stream: 1080p; WVGA; D1; QVGA; CIF |
| Video Frame Rate |
25 fps |
| Video Bit Rate |
256 kbps to 8 Mbps |
| Light Compensation |
Auto IR |
| Day/Night |
Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 kHz, 16 bits |
Function(VTO)
| Communication Mode |
Digital 2-wire |
| Unlock Mode |
Remote |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| Storage |
Supports Micro SD card (up to 256 GB) |
| Web Configuration |
Yes |
Performance(VTO)
Port(VTO)
| RS-485 |
1 |
| Alarm Output |
1 |
| Power Output |
1 port (12 V, 600 mA) |
| Exit Button |
1 |
| Door Status Detection |
1 |
| Lock Control |
1 |
| Network Port |
1 × RJ-45 port, 10/100 Mbps network port |
Alarm(VTO)
General(VTO)
| Appearance Color |
Silver |
| Power Supply |
Dahua 2-wire switch (max. power supply distance is 50 m) 48 VDC, 1 A; PoE (802.3af/at) |
| Power Adapter |
Optional |
| Installation |
Surface mount (The surface mount kit comes with the surface mount bracket) |
| Certifications |
CE |
| Accessory |
Surface mount box (included) |
| Product Dimensions |
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection |
IK07; IP65 |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
10%–90% (RH), non-condensing |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment |
Outdoor |
| Power Consumption |
≤4 W (standby), ≤5 W (working) |
| Gross Weight |
0.48 kg (1.06 lb) |
| Storage Humidity |
30%–75% (RH), non-condensing |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
System (VTH)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux Operation System |
| Button Type |
Touch button |
| Interoperability |
ONVIF |
| Network Protocol |
SIP; IPv4; RTSP; RTP; TCP; UDP |
Basic (VTH)
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
7" TFT |
| Screen Resolution |
1024 (H) × 600 (V) |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression |
| Audio Bit Rate |
16 kHz, 16 bits |
Function (VTH)
| Communication Mode |
Digital 2-wire |
| Information Release |
Supports viewing text announcement from the center (insert an SD card to receive and view pictures) |
| Leave Videos |
Yes (SD card inserted in VTH is needed) |
| DND Mode |
Do not disturb period can be set;Do not disturb mode can be set |
| Number of Extensions |
Villa: 4; apartment: 3 |
| Storage |
Supports Micro SD card (up to 64 GB) |
Port (VTH)
| RS-485 |
1 |
| Alarm Input |
6 channel (switch quantity) |
| Alarm Output |
1 channel |
| Power Output |
1 port (12 V, 100 mA) |
| Door Bell |
Yes, reusing any alarm input port |
| Network Port |
One 2-wire port and one 10/100 Mbps Ethernet port (one of them can be selected) |
Performance(VTH)
General (VTH)
| Appearance Color |
White |
| Power Supply |
2-wire switch (max power transmission distance: 50 m); Standard PoE |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE; FCC; UL |
| Accessory |
Bracket (standard) Alarm ribbon cable (standard) |
| Product Dimensions |
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature |
–10°C to +55°C (+14°F to +131°F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment |
Indoor |
| Power Consumption |
≤2 W (standby), ≤6 W (working) |
| Gross Weight |
0.74 kg (1.63 lb) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
30%–75% (RH), non-condensing |
System(Networking Device)
| Main Processor |
Embedded Processor |
Function(Networking Device)
| Communication Mode |
Digital 2-wire |
Performance(Networking Device)
Port(Networking Device)
| Network Port |
Two 2-wire ports for cascade; Two RJ-45 10/100 Mbps self-adaptive ports One 2-wire device port |
General (Networking Device)
| Appearance Color |
White |
| Power Supply |
48 VDC, 1–5A |
| Power Adapter |
Included |
| Installation |
Guide Rail Mount |
| Certifications |
CE; FCC; UL |
| Product Dimensions |
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57") |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
| Power Consumption |
≤15 W (self-working); output≤ 48 W (villa) |
| Gross Weight |
0.39 kg (0.86 lb) |
