描述

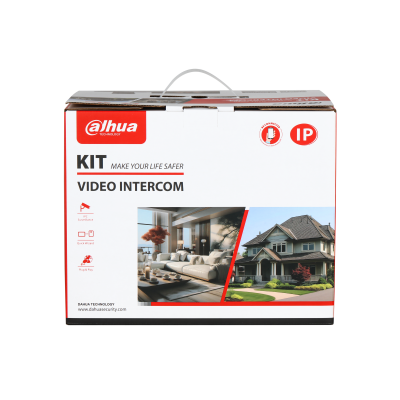

KTP02
Video Intercom KIT
KTP02 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
Technical Specification
System(VTO)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux |
| Button Type |
Mechanical |
| Interoperability |
ONVIF;CGI |
| Network Protocol |
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
Basic(VTO)
| Camera |
1/2.8" 2 MP CMOS high definition, low illumination/DWDR/ color/IR |
| Field of View |
H: 107°; V: 60°; D: 122° |
| Noise Reduction |
3D NR |
| Video Compression |
H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, CIF; Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate |
PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate |
256 Kbps–8 Mbps |
| Light Compensation |
Auto IR |
| Day/Night |
Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 KHz, 16 bit |
Function(VTO)
| Communication Mode |
Full digital |
| Verification Method |
Card;App;Indoor monitor |
| Leave Videos |
Yes (SD card inserted in VTH is needed) |
| Web Configuration |
Yes |
RFID(VTO)
| Card Type |
IC card |
| Modulation Type |
ASK |
| Frequency Range |
13.56 MHz |
| Max. Transmission Power |
42 dBuA/m @10 m |
Performance(VTO)
| Card Reading Distance |
0 cm–4.5 cm (0"–1.77") |
| Issue Card Locally |
Yes |
| Casing Material |
PC + Acrylic |
Capacity(VTO)
Port(VTO)
| RS-485 |
1 channel |
| Power Output |
1 port (12 V, 200 mA) |
| Exit Button |
1 channel |
| Door Status Detection |
1 channel |
| Lock Control |
1 channel |
| Network Port |
1 × 10Mbps/100Mbps network port (8-core white ribbon cable) |
Alarm(VTO)
General(VTO)
| Appearance Color |
Black |
| Power Supply |
12 VDC, 1 A; Standard PoE |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE |
| Accessory |
Included: Alarm power ribbon cable, rain cover, brackets |
| Product Dimensions |
135.1 mm × 70.6 mm × 34.6 mm (5.32" × 2.78" × 1.36") (L × W × H) |
| Protection |
IP65 (silicone sealant is needed, see the quick start guide.); IK04 (for common use) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
10%–90% (RH), non-condensing |
| Operating Altitude |
Beneath 3000 m (9842.52 ft) |
| Operating Environment |
Outdoor |
| Power Consumption |
≤ 1 W (standby), ≤ 5 W (working) |
| Gross Weight |
326 g (0.72 lb) |
System(VTH)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux |
Basic(VTH)
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 KHz, 16 bits |
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
7-inch display screen |
| Screen Resolution |
1024 (H) × 600 (V) |
Function(VTH)
| Communication Mode |
Full digital |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| Information Release |
Receive and view the published information from the management center |
| DND Mode |
Yes |
| Number of Extensions |
Villa: 9 extensions; Apartment: 4 extensions |
| Storage |
Built-in 8 GB Micro SD card, maximum memory capacity 512 GB |
Port(VTH)
| Network Port |
One 10 Mbps/100 Mbps Ethernet port |
| Alarm Input |
6 channels |
| Alarm Output |
1 channel |
| Doorbell |
Yes (use the alarm input port) |
Alarm(VTH)
Performance(VTH)
General(VTH)
| Appearance Color |
Black |
| Power Supply |
12 VDC, 1 A; Standard PoE |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE |
| Accessory |
Included: bracket and alarm cable. |
| Product Dimensions |
221.5 mm × 119.6 mm × 23.5 mm(8.72" × 4.71" × 0.93") (L × W × H) |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
Less than 3,000 meters |
| Operating Environment |
Indoor |
| Power Consumption |
≤3 W (standby), ≤7 W (working) |
| Gross Weight |
0.661 kg (1.46 lb) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
30%–75% |
System(Networking Device)
| Main Processor |
Embedded Processor |
Port(Networking Device)
| Network Port |
4 × PoE ports with 10/100 Mbps Base-TX; 2 uplink ports with 10/100Mbps Base-TX |
General(Networking Device)
| Appearance Color |
Black |
| Certifications |
CE; FCC |
| Product Dimensions |
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") (L × W × H) |
| Gross Weight |
0.56 kg (1.23 lb) |
