描述

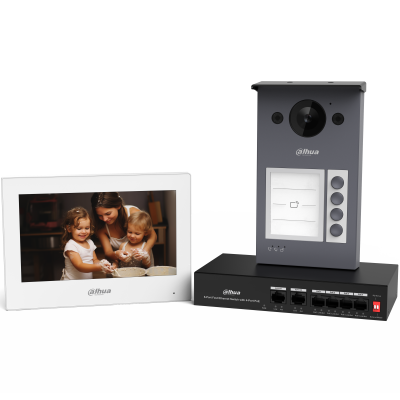

KTP10
Video Intercom KIT
KTP10 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System(DHI-VTO3311Q-WP)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Button Type |
Mechanical |
| Interoperability |
ONVIF; CGI |
| Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic(DHI-VTO3311Q-WP)
| Camera |
1/2.8" 2 MP CMOS HD camera |
| Field of View |
H: 125°; V: 65°; D: 139° |
| WDR |
120 dB |
| Noise Reduction |
2D NR;3D NR |
| Video Compression |
H.264; H.265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate |
PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate |
768 kbps–8 Mbps |
| Light Compensation |
Auto IR |
| Day/Night |
Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 kHz, 16 bit |
Function(DHI-VTO3311Q-WP)
| Communication Mode |
Full digital |
| Verification Method |
Indoor monitor; App; Card |
| Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| Storage |
Supports Micro SD card (up to 256 GB) |
| Web Configuration |
Yes |
RFID(DHI-VTO3311Q-WP)
| Card Type |
IC card |
| Modulation Type |
AM |
| Frequency Range |
13.56 MHz |
| Max. Transmission Power |
42 dBuA/m @10 m |
Wi-Fi(DHI-VTO3311Q-WP)
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range |
2.4 GHz |
| Max. Transmission Power |
≤20 dBm@2,400–2,483.5 MHz |
Performance(DHI-VTO3311Q-WP)
| Card Reading Distance |
0 cm–3.5 cm (0"–1.38") |
| Issue Card Locally |
Yes |
| Casing Material |
Aluminum alloy |
Capacity(DHI-VTO3311Q-WP)
Port(DHI-VTO3311Q-WP)
| RS-485 |
1 |
| Alarm Input |
1 |
| Alarm Output |
1 channel |
| Power Output |
1 port (12 V, 200 mA) |
| Exit Button |
1 channel |
| Door Status Detection |
1 channel |
| Lock Control |
1 channel |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
Alarm(DHI-VTO3311Q-WP)
General(DHI-VTO3311Q-WP)
| Appearance Color |
Grey |
| Power Supply |
12 VDC, 1 A Standard PoE |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE; FCC |
| Accessory |
Included: Alarm power ribbon cable, rain cover |
| Product Dimensions |
188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18") (H × W × D) |
| Protection |
IP65; IK08 |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
10%–90% |
| Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment |
Outdoor |
| Power Consumption |
≤ 3 W (standby), ≤ 6 W (working) |
| Gross Weight |
0.81 kg (1.79 lb) |
System(DHI-VTH2621GW-WP)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Network Protocol |
RTSP; DNS; RTP; SIP; SSH |
Basic(DHI-VTH2621GW-WP)
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
7-inch display screen |
| Screen Resolution |
1024 (H) × 600 (V) |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression |
| Audio Bit Rate |
16 kHz, 16 bit |
Function(DHI-VTH2621GW-WP)
| Communication Mode |
Full digital |
| Information Release |
Receive and view text information released by the management center |
| DND Mode |
Do not disturb period can be set; Do not disturb mode can be set |
| Number of Extensions |
Villa: 9 Apartment: 4 |
Wi-Fi(DHI-VTH2621GW-WP)
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range |
2.4 GHz |
| Max. Transmission Power |
≤20 dBm@2,400–2,483.5MHz |
Port(DHI-VTH2621GW-WP)
| RS-485 |
1 |
| Alarm Input |
6 |
| Alarm Output |
1 |
| Door Bell |
Yes (use any alarm input port) |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
Performance(DHI-VTH2621GW-WP)
General(DHI-VTH2621GW-WP)
| Appearance Color |
White |
| Power Supply |
12 VDC, 1 A Standard PoE |
| Power Adapter |
Not included |
| Installation |
Surface Mount |
| Certifications |
CE; FCC |
| Accessory |
Included: Bracket, alarm power ribbon cable |
| Product Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.46" × 5.30" × 1.02") (L × W × H) |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
| Operating Environment |
Indoor |
| Power Consumption |
≤ 2 W (standby), ≤ 6 W (working) |
| Gross Weight |
575 g (1.27 lb) |
Hardware (DH-PFS3006-4ET-36)
| Data Transmission Port |
4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100 Mbps Base-TX |
| Power Supply |
VAC 100–240 |
| Operating Temperature |
–10°C to +55°C (–14°F to 131°F) |
| Operating Humidity |
10%–90% |
| Power Consumption |
Idling: 0.5 W Full load: 36 W |
PoE (DH-PFS3006-4ET-36)
| PoE Budget |
Port1-4 ≤30 W, whole PoE budget ≤36 W |
| PoE Standard |
IEEE802.3af, IEEE802.3at |
| PoE Pin Assignment |
PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) |
Performance (DH-PFS3006-4ET-36)
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.89 Mpps |
| MAC Table Size |
2 K |
| Jumbo Frame |
2,048 bytes |
| Communication Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3X |
| ESD |
Air discharge: 8 kV Contact discharge: 6 kV |
| Thunderproof |
Common mode: 6 kV Differential mode: 4 kV |
| Net Weight |
0.56 kg (1.23 lb) |
| Gross Weight |
1.11 kg (2.15 lb) |
| Product Dimensions (W × L × H) |
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") |
| Certifications |
CE: EN60950; FCC |
