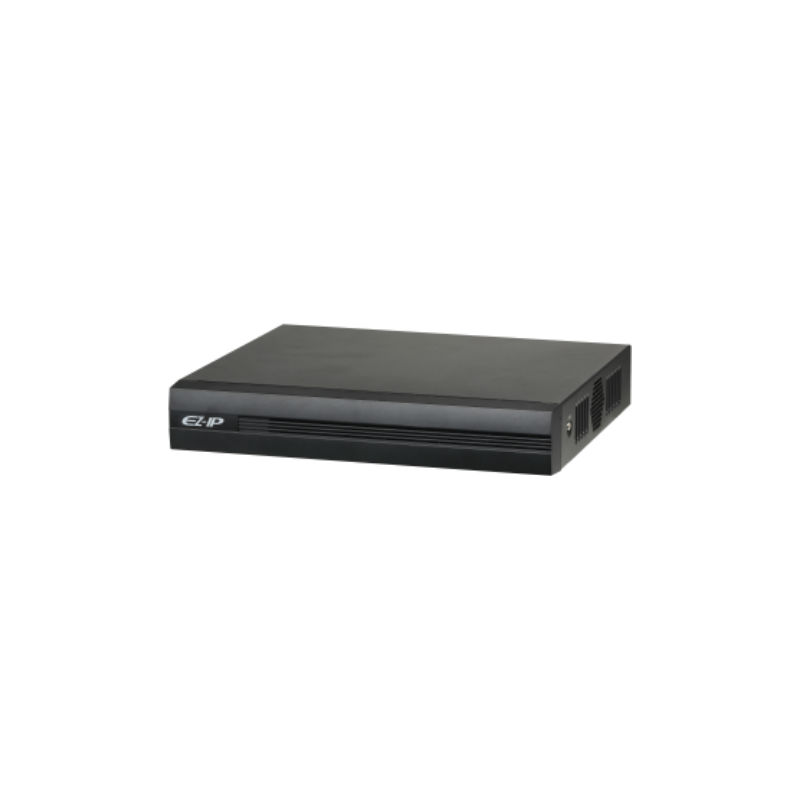

DAHUA NVR1B08HS-8PE

8 Channel Compact 1U 8PoE H.265 Network Video Recorder

> H.265+/H.264+ codec decoding
> Max 40Mbps/20Mbps incoming/outgoing bandwidth
> Max 8 channel IP camera inputs
> Up to 6MP resolution preview&playback
> Up to 1ch@6MP/4ch@1080P 25fps decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports

描述

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

8 Channel

Two-way Talk

N/A

Display

Interface

1 HDMI, 1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Decoding Capacity

1ch@6MP 30fps, 4ch@1080P 25fps

Multi-screen Display

1/4

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

H.265+/H.264+

Resolution

6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.

Record Rate

40Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule(Regular(Continuous), MD, Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Sync Playback

1/4/9

Search Mode

Time /Date, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface

1 RJ-45 port (10/100Mbps)

PoE

8 ports(IEEE802.3at/af)

Network Function

HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search(Support IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF ,SDK, CGI Conformant

Storage

Internal HDD

1 SATA III Port, up to 4TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 ports (2 Rear USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

Single, DC48V/2A

Power Consumption

NVR: <4.29W (without HDD)

PoE: Max 25.5w for single port, 72w in total

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)

Cooper 1U, 260mm×227mm×47.6mm

(10.24″ x 8.94″ x 1.87″)

Net Weight

2 kg (4.41 lb) (without HDD)

Gross Weight

2.5 kg(5.51 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014
