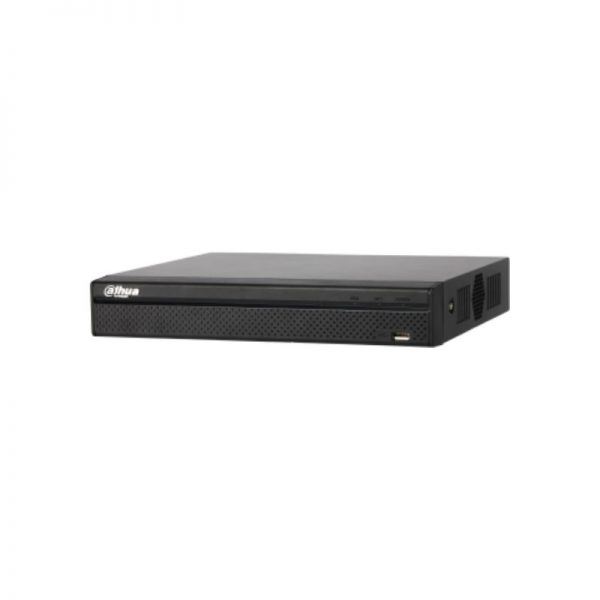

DAHUA NVR2108HS-8P-S2

8 Channel Compact 1U 8PoE Lite Network Video Recorder

>H.264+/H.264 codec decoding
>Max 80Mbps incoming bandwidth
>Up to 6Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with PTZ camera

描述

System

Main ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX

Audio and Video

IP Camera Input8 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA

Display

Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display1/4/8/9
OSDCamera title, Time, Camera lock, Motion detection, Recording

Recording

CompressionH.264+/H.264
Resolution6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate80Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record ModeManual, Schedule(Regular(Continuous), MD, Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger EventsRecording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm inputN/A
Relay OutputN/A

Playback and Backup

Sync Playback1/4/8
Search ModeTime /Date, MD and Exact Search

(accurate to second)

Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network

Third-party Support

Third-party SupportArecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface1 RJ-45 port (10/100Mbps)
Ethernet Port1 Independent 100Mbps Ethernet Port
PoE8 ports (IEEE802.3at/af)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber InterfaceN/A
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant

Storage

Internal HDD1 SATA III Port, up to 6TB capacity for each HDD
HDD ModeSingle
eSATAN/A

Auxiliary Interface

USB2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232N/A
RS485N/A
Electrical
Power SupplySingle, DC48V/2A
Power Consumption<4.5W (without HDD)

Environmental

Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)Compact 1U, 260mm×224.9mm×47.6mm

(10.2″ x 8.9″ x 1.9″)

Net Weight0.8kg (1.76 lb) (without HDD)
Gross Weight1.6kg(3.53 lb)(without HDD)

Certifications

CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
