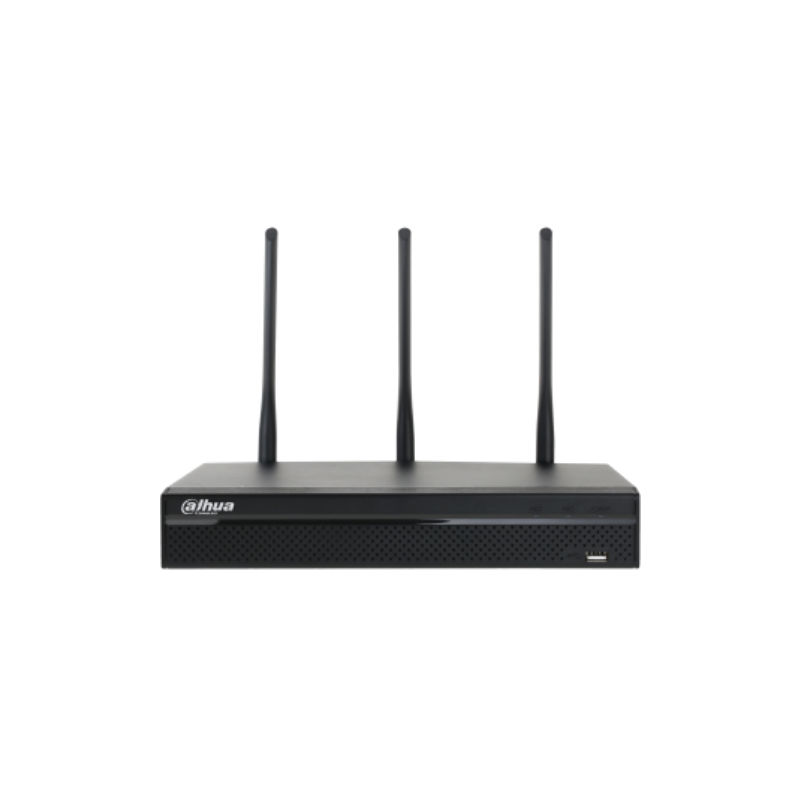

DAHUA NVR4104HS-W-S2

4 Channel Compact 1U WiFi Network Video Recorder

> H.264/MJPEG codec decoding

> Max 80Mbps Incoming Bandwidth

> Up to 5MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support three-antenna to strengthen the WiFi signal
> Support 2.4GHz and 5GHz dual-bands

Description

System

Main Processor Dual-core embedded processor
Operating System Embedded LINUX

Display

Interface 1 HDMI, 1 VGA
Resolution 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18),

Video Loss and Camera Blank

Alarm input N/A
Relay Output N/A

Playback and Backup

Playback 1/4
Search Mode Time /Date, MD and Exact Search

(accurate to second), Smart search

Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera,

Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode USB Device/Network

Storage

Internal HDD 1 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA N/A

Auxiliary Interface

USB 2 USB Ports (2 USB2.0)
RS232 N/A
RS485 N/A

Third-party Support

Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

IP Camera Input 4 Channel
Two-way Talk N/A

Recording

Compression H.264/MJPEG
Resolution 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface 1 RJ-45 Port (10/100Mbps)
Ethernet Port 1 Independent 100Mbps Ethernet Port
PoE N/A
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,

IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant

Electrical

Power Supply Single, DC12V/2A
Power Consumption <10W (Without HDD)

Environmental

Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions 260mm x 246.4mm x 47.6mm

(10.24″ x 9.7″ x 1.87″)

Net Weight 0.5kg (1.1 lb) (Without HDD)
Gross Weight 2.0kg (4.4 lb)(Without HDD)

Certifications

CE Coming soon
FCC Coming soon
