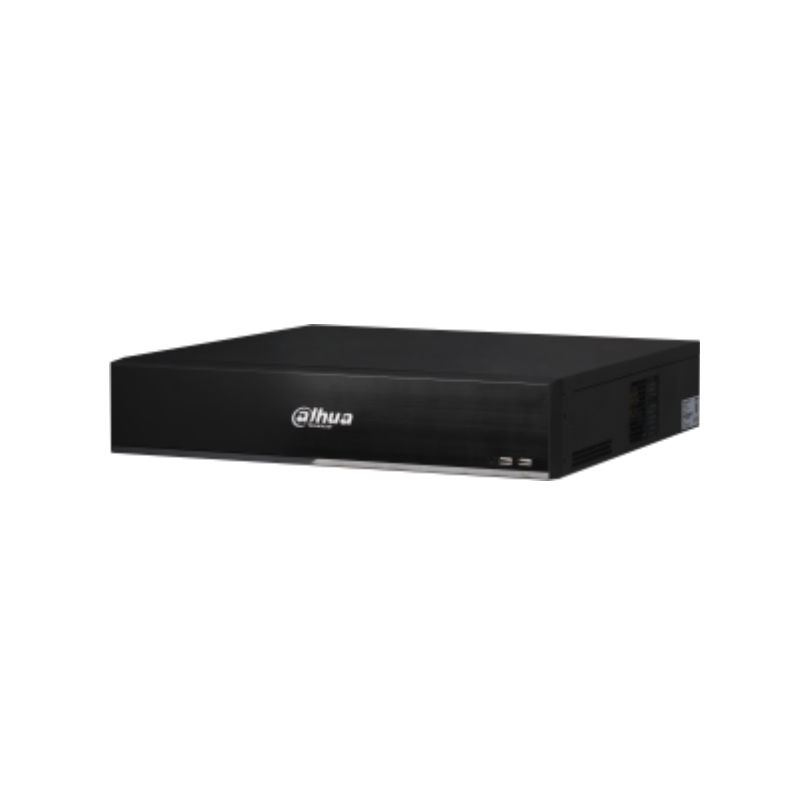

DAHUA NVR4832-I

32Channel 2U AI Network Video Recorder

> 32 Channel IP video access
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Up to 4 Channel perimeter protection
> Up to 2 Channel video stream face recognition/8 channel picture stream face recognition ( with FD camera)
> Up to 12 face pictures /sec processing
> Up to 10 face databases with 20,000 face images in total

描述

System

Main Processor

Multi-core embedded processor

Operating System

Embedded LINUX

Perimeter Protection

Performance

4 channel, 10 IVS rules for each channel

Object classification

Human/Vehicle secondary recognition for tripwire and intrusion

AI Search

Search by target classification (Human, Vehicle) by targe

Face Recognition

Performance

Max 12 face pictures /sec processing

2 channel video stream face recognition / 8 channel picture stream face recognition ( with FD camera)

Stranger Mode

Detect strangers’ faces(not in device’s face database).Similarity threshold can be set manually.

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

Audio and Video

IP Camera Input

32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI/VGA: 3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768

Decoding Capability

2-ch@8MP(30fps), 8-ch@1080P(30fps)

Multi-screen Display

1/4/8/9/16

Recording

Bandwidth

200Mbps (80Mbps when AI function enabled, based on private protocol)

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Record Mode

Manual, Schedule (Continuous, MD(Motion Detection) , Alarm, IVS)

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change

Alarm Input

16 Channel

Alarm Output

4 Channel

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, Xunmei, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

2 RJ-45 Ports (10/100/1000Mbps)

PoE

N/A

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Center, IP Search (Support IP camera, DVR, NVS, etc.), P2P

Max. User Access

128 users

Mobile App

iPhone, iPad, Android

Interoperability

ONVIF (Profile S), SDK, CGI

Storage

Internal HDD

8 SATA III Ports, Up to 8 TB capacity for each HDD

eSATA

NA

Auxiliary Interface

USB

3 USB Ports (1 Rear USB 3.0 , 2 Front USB 2.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Electrical

Power Supply

Single,AC100-240V, 1.9A

Power Consumption

NVR: <7.4W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

2U, 439mm x 445mm x 93.5mm ;

(17.3″ x 17.5″ x 3.7″)

Net Weight

6.57kg (14.5 lb) (without HDD)

Gross Weight

8.75kg (19.3 lb) (without HDD)

Certifications

CE

EN55035, EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014
