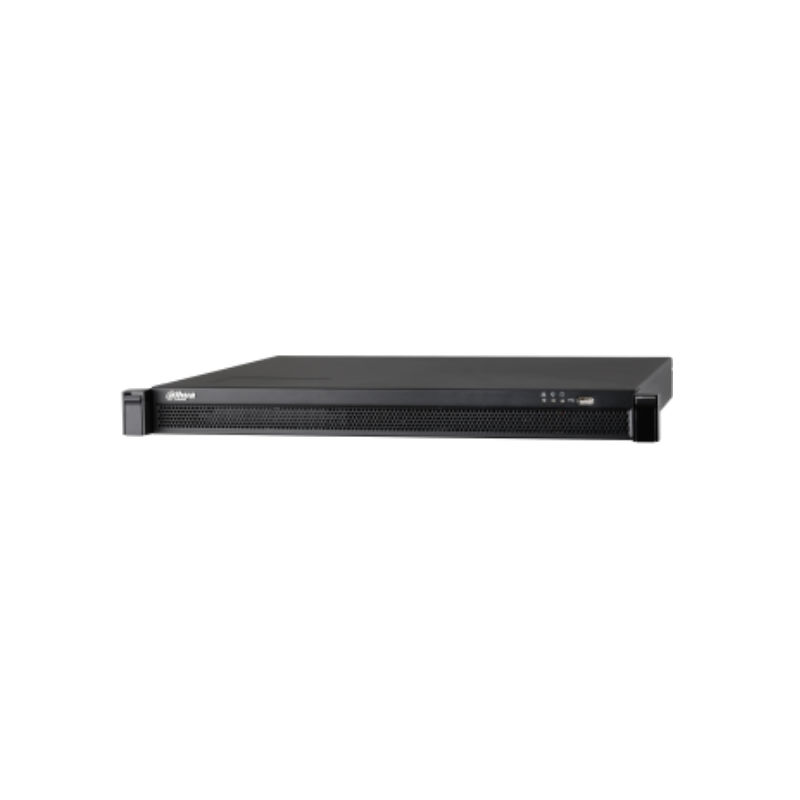

DAHUA NVR5224-24P-4KS2

24Channel 1U 24PoE 4K&H.265 Pro Network Video Recorder

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Support IPC UPnP, 24 PoE ports
> 3D intelligent positioning with PTZ camera

描述

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

24 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI (up to 3840 x 2160), 1 VGA

Resolution

3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

Multi-screen Display

1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Record Rate

320Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

4 Channel, Low Level Effective, Green Terminal Interface

Relay Output

2 Channel, NO/NC Programmable, Green Terminal Interface

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network

Interface

1 RJ-45 Ports (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Ports

PoE

24 ports (IEEE802.3af/at)

Network Function

HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.)

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Storage

Internal HDD

2 SATA III Ports, Up to 8 TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

SAS

N/A

Auxiliary Interface

USB

2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

N/A

Electrical

Power Supply

Single, AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

<16W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 440mm x 419.96mm x 43.65mm ;

(17.3″ x 16.5″ x 1.7″)

Net Weight

4.5kg (9.9 lb) (without HDD)

Gross Weight

6.45kg (14.2 lb)

Installation

Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2015

UL

UL 60950-1 and CAN/CSA C22.2 No.60950-1
