描述
P3D-3F-PV-P

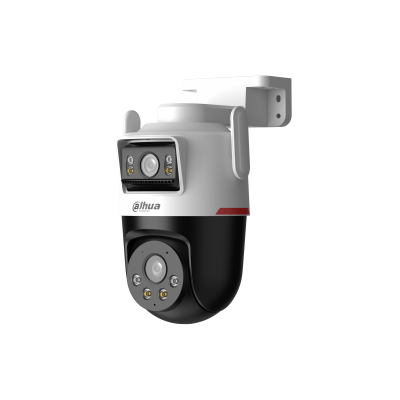

3+3MP Outdoor WizColor Wi-Fi Dual-Lens Pan & Tilt Camera
P3D-3F-PV-P 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS |
| Max. Resolution |
Channel 1-2: 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Number |
4 (Warm light) |
| Angle Adjustment |
Pan: 0° to 352° Tilt: 0° to 90° |
| Lens Type |
Fixed-focal |
| Focal Length |
Channel 1 (PT Lens): 6 mm Channel 2 (Fixed Lens): 2.8 mm |
| Max. Aperture |
F1.0 |
| Field of View |
Channel 1 (PT Lens): H: 52°; V: 29°; D: 60° Channel 2 (Fixed Lens): H: 89°; V: 48°; D: 105° |
Intelligence
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Audio and Video
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Video Frame Rate |
Main stream: 2304 × 1296@(1–20 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate |
H.265: 512 kbps–4096 kbps |
| Day/Night |
Color/B/W |
| WDR |
120 dB |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Image Rotation |
0°/180° |
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Wi-Fi |
IEEE 802.11b/g/n 2.4 G, EIRP≤20 dBm@2400–2483.5 MHz (CE) |
| Wi-Fi Pairing |
Bluetooth pairing |
| Storage |
Micro SD card (support max. 256 GB) |
| Management Software |
Smart PSS Lite; DSS; DMSS |
| Mobile Client |
Android;iOS |
Function
General
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power Supply |
12 VDC (±30%); PoE (802.3af) |
| Power Consumption |
Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.8 W (12 VDC); 11.1W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on) |
| Operating Temperature |
–30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66 |
| Camera Button |
Reset button |
| Casing Material |
Plastic |
| Product Dimensions |
159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H) |
| Net Weight |
585 g (1.29 lb) |
