P3F-PV

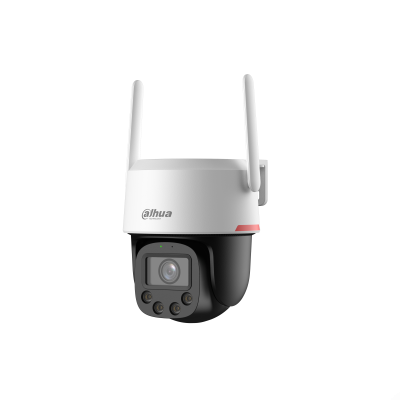

3MP WizColor Outdoor Wi-Fi Pan & Tilt Network Camera
P3F-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2304 (H) × 1296 (V) |
| Electronic Shutter Speed |
1 s–1/100,000 s |
| Min. Illumination |
0.0005 [email protected] (Color, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance |
30 m (98.43 ft) (Warm light) |
| Illuminator Number |
4 (Warm light) |
Lens
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
H: 81.6°; V: 44.3°; D: 96.4° |
PTZ
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to 90° |
Smart Event
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Video
| Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG(Sub Stream 1) |
| Video Frame Rate |
Main stream: 3M/1080p/720p@(1–25/30 fps) Sub stream 1: 640 × 360/QVGA@(1–25/30 fps) |
| Day/Night |
Color/B/W |
| WDR |
120 dB |
| Motion Detection |
Yes |
| Image Rotation |
180° |
Audio
| Audio Compression |
PCM, G.711A, G.711Mu |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Wi-Fi Standard |
IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
| Wi-Fi Frequency Range |
2.4 GHz |
| Wi-Fi Transmission Rate |
229 Mbps |
| Wi-Fi Pairing |
Bluetooth pairing |
| Max. Transmission Power |
≤20 dBm@2400–2483.5 MHz |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
| Storage |
Micro SD card (Up to 512 GB); FTP |
| Management Software |
DMSS; NVR |
| Mobile Client |
iOS; Android |
Function
Certification
Power
| Power Supply |
12 VDC, 1 A ± 10% |
| Power Consumption |
Basic: 3 W Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W |
Environment
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight |
0.60 kg (1.32 lb) |
