描述

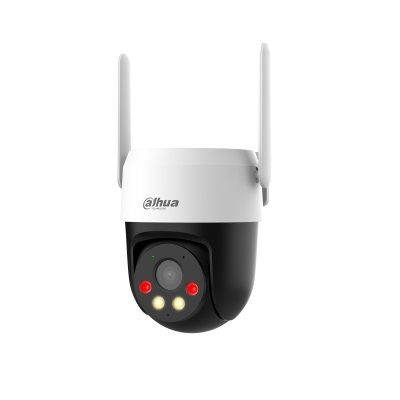

P5AE-PV-4G
5MP Fixed-focal 4G Pan & Tilt Network Camera
P5AE-PV-4G 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2880 (H) × 1620 (V) |
| Illumination Distance |
30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR) |
| Electronic Shutter Speed |
1/25 s–1/100,000 s |
| Illuminator Number |
2 (IR light); 2 (Warm light) |
Lens
| Focal Length |
4.0 mm |
| Max. Aperture |
F1.6 |
| Field of View |
H: 81.27°; V: 47.73°; D: 94.41° |
| Iris Control |
Fixed |
PTZ
| Pan/Tilt Range |
"Pan: 0° to 345° Tilt: 0° to +90°" |
Smart Event
| IVS |
Tripwire and intrusion |
| Human Detection |
Human detection; Auto-tracking |
| Vehicle Detection |
Yes |
Intelligence
Video
| Video Compression |
Smart H.265+;H.265;Smart H.264+; H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Video Frame Rate |
Main stream: 5M/1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Video Bit Rate |
H264: 64 – 8192 kbps H265: 25 – 6400 kbps |
| Day/Night |
Auto (ICR); Color/B/W |
| WDR |
DWDR |
| Motion Detection |
Yes |
| Image Rotation |
180° |
Audio
| Audio Compression |
PCM; G.711a; G.711Mu; G.726 |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Wireless Carrier Frequency Band |
EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Max. Transmission Power |
4G:Power class3:23dBm±2dB |
| Storage |
Micro SD card (support max. 256 GB); |
| Management Software |
DMSS |
| Mobile Client |
iOS; Android |
General
| Certifications |
CE |
| Power Supply |
12 VDC, 1 A ± 10% |
| Power Consumption |
Basic: 3 W Max: 9 W (illuminator + PTZ) |
| Power Adapter |
Included |
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
TVS 2000 V lightning proof; surge protection; voltage transient protection; Waterproof and Dustproof |
| Camera Button |
Reset button |
| Casing Material |
Plastic |
| Product Dimensions |
140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight |
0.5 kg (1.10 lb) |
