描述
P5D-5F-PV

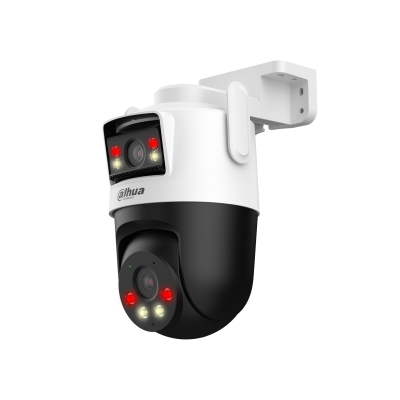

5+5MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera
P5D-5F-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
Fixed Lens
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | -10° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 95°; V: 53°; D: 110° |
PT Lens
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 352°; Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 49°; V: 26°; D: 57° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2880 × 1620@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 768 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G,≤[email protected] |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
General
| Certifications | CE |
|---|---|
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2.6 W Max.: 10.6 W (pulling stream+ IR + siren and light active deterrence) |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Casing Material | Plastic |
| Product Dimensions | 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H) |
| Net Weight | 585 g (1.29 lb) |
