描述

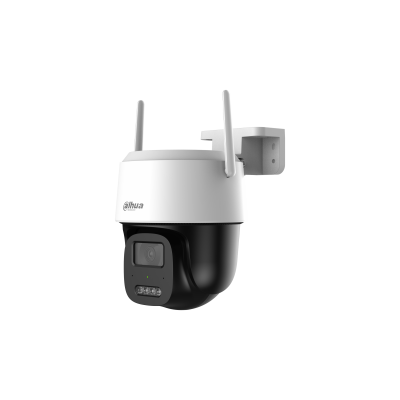

Picoo P5X
5MP Fixed-focal Wi-Fi Pan & Tilt Camera
Picoo P5X 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 350° Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 78°; V: 42°; D: 92° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265; H.264; H.264H; H.264B |
|---|---|
| Video Frame Rate | Main stream: 2880 × 1620@(1–25/30 fps) Sub stream: 640 × 360@(1–25 fps) *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.264: 12 kbps–4096 kbps H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
Network
| Network Port | RJ-45 (10 Base-Te/100 Base-T) |
|---|---|
| Wi-Fi | IEEE 802.11b/g/n/a/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤27 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE) |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (supports max 512 GB); Dahua Cloud |
| Management Software | DMSS |
| Mobile Client | Android;iOS |
General
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU |
|---|---|
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Basic: 2.3 W (12 VDC) Max (Illuminator intensity + red and blue warning light + speaker + PTZ motor + Wi-Fi streaming on): 10.8 W (12 VDC) |
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Camera Button | Reset Button |
| Casing Material | Plastic |
| Product Dimensions | 141.6 mm × 172.7 mm × 182.4 mm (5.57" × 6.80" × 7.18") (L × W × H) |
| Net Weight | 0.6 kg (1.32 lb) |
