描述

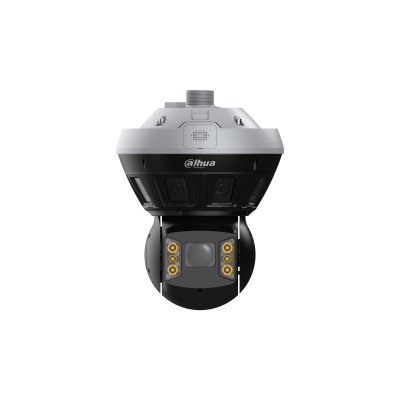

PSDW81652S-A360-D440
16 MP Multi-Sensor 360° Panoramic PTZ Mini Hubble WizMind Network Camera
PSDW81652S-A360-D440 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | Channel 1 (Panoramic): 1/1.8" CMOS Channel 2 (PTZ): 1/1.8" CMOS |
|---|---|
| Max. Resolution | Channel 1 (Panoramic): 8192 (H) × 1800 (V) Channel 2 (PTZ): 2688 (H) × 1520 (V) |
| ROM | Channel 1 (Panoramic): 8 GB Channel 2 (PTZ): 4 GB |
| RAM | Channel 1 (Panoramic): 4 GB Channel 2 (PTZ): 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | Channel 1 (Panoramic): 0.0005 [email protected] (Color, 30 IRE) 0.0001 [email protected] (B/W, 30 IRE) Channel 2 (PTZ): 0.001 [email protected] (Color, 30 IRE) 0.0001 lux @F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Channel 1 (Panoramic): NA Channel 2 (PTZ): Up to 150 m (492.13 ft)(IR); Up to 100 m (328.09 ft)(Warm light) |
| Illuminator On/Off Control | Auto; Manual; Zoomprio |
| Illuminator Number | Channel 1 (Panoramic): NA Channel 2 (PTZ): 6 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 360° ; Tilt: –10° to 180°, auto flip 180° |
| Gradienter | Yes |
Lens
| Lens Type | Channel 1 (Panoramic): Fixed-focal Channel 2 (PTZ): Vari-focal |
|---|---|
| Lens Mount | Channel 1 (Panoramic): M16 Channel 2 (PTZ): Module |
| Focal Length | Channel 1 (Panoramic): 2.8 mm Channel 2 (PTZ): 5.2 mm–210 mm |
| Max. Aperture | Channel 1 (Panoramic): F1.0 Channel 2 (PTZ): F1.6–F5.0 |
| Field of View | Channel 1 (Panoramic): H: 360°; V: 103°; Channel 2 (PTZ): H: 60.8°–2.8°; V: 35.9°–1.7°; D: 67.7°–3.3° |
| Iris Control | Channel 1 (Panoramic): Fixed Channel 2 (PTZ): Auto |
| Close Focus Distance | Channel 1 (Panoramic): 1.4 m (4.59 ft) Channel 2 (PTZ): 0.5 m (1.64 ft) |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
| Intelligence Notes | Channel 1 (Panoramic): Perimeter protection, crowd map (Large-Scale AI Models), vehicle density, boat detection. Channel 2 (PTZ): Perimeter protection, video metadata, face detection. |
|---|---|
| IVS (Perimeter Protection) | Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence; fast moving; abandoned object; missing object; crowd gathering; loitering detection |
| Face Detection | Channel 1 (Panoramic): NA Channel 2 (PTZ): Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| Vehicle Density | Channel 1 (Panoramic): Vehicle density; parking upper limit; traffic congestion; vehicle status alarm Channel 2 (PTZ): NA |
| Crowd Distribution Map | Channel 1 (Panoramic): Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area; crowd status Channel 2 (PTZ): NA |
| Video Metadata | Channel 1 (Panoramic): NA Channel 2 (PTZ): Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.264+; Smart H.265+ |
| Video Frame Rate | Channel 1 (Panoramic): Main stream: 8192 × 1800@(1–25/30 fps) sub stream: 2048 × 452@(1–25/30 fps) third stream: 3840 × 832@(1–25/30 fps) Channel 2 (PTZ): Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 480@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams |
| Resolution | Channel 1 (Panoramic): 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 ×900; 2048 × 452;3840 × 832; 2560 × 560 Channel 2 (PTZ): 2688 × 1520; 2560 × 1440; 2304 × 1296; 1920 × 1080; 1280 × 960; 1280 × 720; 704 × 480; 640 × 480; 352 × 240 |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | Channel 1 (Panoramic): H.264: 96 kbps–32768 kbps H.265: 38 kbps–25692 kbps Channel 2 (PTZ): H.264: 32 kbps–16384 kbps H.265: 12 kbps–11008 kbps |
| Day/Night | Channel 1 (Panoramic): NA Channel 2 (PTZ): ICR |
| BLC | Yes |
| HLC | Yes |
| WDR | Channel 1 (Panoramic): DWDR Channel 2 (PTZ): 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Channel 1 (Panoramic): Yes (4 areas) Channel 2 (PTZ): Yes (8 areas) |
| Image Stabilization | Channel 1 (Panoramic): NA Channel 2 (PTZ): Gyroscope Image Stabilization (GIS) |
| Defog | Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical defog |
| Privacy Masking | Channel 1 (Panoramic): 4 areas (rectangle) Channel 2 (PTZ): 24 areas (8 for each preset) (polygon) |
Audio
| Built-in MIC | Yes, built-in dual Mic |
|---|---|
| Built-in Speaker | Yes, built-in dual speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default |
Alarm
| Alarm Event | Channel 1 (Panoramic): External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit; Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence; fast moving; abandoned object; missing object; crowd gathering; loitering detection; face detection; video metadata |
|---|
Network
| Network Port | RJ-45 (10/100/1000 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Security | WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Digest; IP/MAC filtering; HTTPS; Trusted upgrade; syslog;Trusted boot |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 400 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS; SMB |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | DSS Pro |
| AR Function | Yes |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –10° to 180°, auto flip 180° |
| Manual Control Speed | Pan: 0°/s–360°/s Tilt: 0°/s–150°/s |
| Preset | 300 |
| Preset Speed | Pan: 0°/s–360°/s Tilt: 0°/s–150°/s |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Tour;Preset; Pattern; Scan |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 2 channels (terminal) |
| Audio Output | 1 channel (terminal) |
| Alarm Input | 3 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power Supply | 36 VDC (±50%); PoE++ (802.3bt) |
| Power Consumption | Basic: 26.4 W (36 VDC); Max.: 67.8 W (36 VDC) (Basic power consumption + WDR + intelligence on +Speaker+Heater+ LED on + PTZ operation) |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67; IK10 |
| Casing Material | Metal + plastic |
| Product Dimensions | Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49") |
| Net Weight | 8.8 kg (19.40 lb) |
| Gross Weight | 12.2 kg (26.90 lb) |
