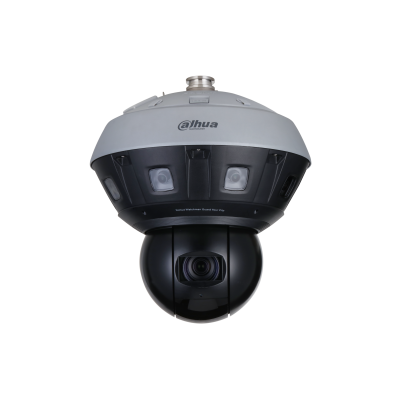

PSDW83242M-A360-D845L-ATC-S3
32 MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Camera
PSDW83242M-A360-D845L-ATC-S3 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 11520 (H) × 2700 (V) |
| ROM | Channel 1 (Panoramic): 8 GB Channel 2 (PTZ): 8 GB |
| RAM | Channel 1 (Panoramic): 4 GB Channel 2 (PTZ): 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Channel 1 (Panoramic): Auto/Manual 1/3 s-1/100,000 s Channel 2 (PTZ): Auto/Manual 1/1 s-1/300,000 s |
| Min. Illumination | Channel 1 (Panoramic):0.001 lux @F1.0(Color, 30 IRE); 0.0001 [email protected] (B/W, 30 IRE) Channel 2 (PTZ):0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Channel 1 (Panoramic): NA Channel 2 (PTZ): Up to 500 m (1640.42 ft) (Laser) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| Illuminator Number | Channel 1 (Panoramic):NA Channel 2 (PTZ):7( LASER LED); 2(IR LED) |
Lens
| Lens Type | Channel 1 (Panoramic): Fixed-focal Channel 2 (PTZ): Motorized vari-focal |
|---|---|
| Lens Mount | Channel 1 (Panoramic): M16 Channel 2 (PTZ): Module |
| Focal Length | Channel 1 (Panoramic): 2.8 mm Channel 2 (PTZ): 5.5 mm–248 mm |
| Max. Aperture | Channel 1 (Panoramic): F1.0 Channel 2 (PTZ): F1.5–F5.3 |
| Field of View | Channel 1 (Panoramic): H: 360°; V: 105° Channel 2 (PTZ): H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29° |
| Iris Control | Channel 1 (Panoramic): Fixed Channel 2 (PTZ): Auto |
| Close Focus Distance | Channel 1 (Panoramic):1.4 m (4.59 ft) Channel 2 (PTZ): 0.1 m–5 m (0.33 ft–16.4 ft) (T to W) |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
| Intelligence Description | Channel 1 (Panoramic): Perimeter protection, crowd distribution map(Large-Scale AI Models), vehicle density. Channel 2 (PTZ): Perimeter protection, video metadata, face recognition |
|---|---|
| IVS (Perimeter Protection) | Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering |
| Face Recognition | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures |
| Vehicle Density | Vehicle density; Parking upper limit; traffic congestion alarm |
| Crowd Distribution Map | Crowd map(Large-Scale AI Models), global crowd density; crowd density in area; people counting in area |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Channel 1 (Panoramic): Main stream: 11520 × 2700@(1-25/30fps) Sub stream: 2048 × 680@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) Channel 2 (PTZ): Main stream: 3840 × 2160@(1-25/30fps) Sub stream: 704 × 576@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) |
| Stream Capability | 3 streams |
| Resolution | Channel 1 (Panoramic): Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900 Sub Stream: 2048×452 Third Stream: 3840 × 832; 2560 × 560 Channel 2 (PTZ): Main stream: 3840 × 2160; 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720 Sub Stream: 704 × 576; 352 × 288 Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Channel 1 (Panoramic): H.264: 127 kbps–20736 kbps H.265: 50 kbps–12544 kbps Channel 2 (PTZ): H.264: 32 kbps–27740 kbps H.265: 12 kbps –16572 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | Channel 1 (Panoramic): DWDR Channel 2 (PTZ): 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Channel 1 (Panoramic): Yes (4 areas) Channel 2 (PTZ): Yes (8 areas) |
| Image Stabilization | Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical Image Stabilization |
| Defog | Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical defog |
| Image Rotation | 0°/180° (Channel 2 (PTZ) |
| Image Correction | Channel 1 (Panoramic): No Channel 2 (PTZ): No |
| Privacy Masking | Channel 1 (Panoramic): 4 areas Channel 2 (PTZ): 24 areas (8 for each preset) |
Audio
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
|---|
Alarm
| Alarm Event | Channel 1 (Panoramic): External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence; fast moving; abandoned object; missing object; crowd gathering; loitering detection; face recognition; video metadata |
|---|
Network
| Network Port | RJ-45(10/100/1000 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Cyber Security | Configuration encryption;trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 400 M) |
| Storage | FTP; SFTP; NFS; SMB; Micro SD card (support max. 512 GB) |
| Browser | IE: IE 9, IE 10 and IE11 Chrome: Chrome 42 and earlier Firefox: Firefox 52 and earlier |
| Management Software | DSS |
Certification
| Certifications | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
PTZ Dome
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –11° to 90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan PTZ speed: 240°/s, Pan preset speed: 240°/s Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s |
| Positioning Accuracy | Pan: 0.05° Tilt: 0.05° |
| Remote PTZ Reset | Yes |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset/Pattern/Tour/Scan |
| Time Task | Yes |
| Three-dimensional Positioning | Yes |
| PTZ Limit | Yes |
| Position Display | Yes |
| Information Display | Yes |
| Time Display | Yes |
Port
| Optical Module Specification | SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm |
|---|---|
| Optical Fiber | FC |
| Optical Fiber Module Type | Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm |
| Audio Input | 2 channels (terminal) |
| Audio Output | 2 channels (terminal) |
| Alarm Input | 7 channels in: 5mA 3V–5V DC |
| Alarm Output | 3 channels out: 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
Power
| Power Supply | 36 VDC |
|---|---|
| Power Consumption | Basic: 51.48 W (36 VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 71.9 W (36 VDC) Heating: Channel 1 (Panoramic): 6 W (36 VDC); PTZ: 5.4 W |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Storage Humidity | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection | IP66; Anti-Corrosion Protection (optional) |
| Anti-corrosion Level | Moderate Protection(-ATC model support) *The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure. |
Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | Φ383 mm × 462 mm (15.07" × Φ18.19") |
| Net Weight | 14.7 kg (32.41 lb) |
| Gross Weight | 19.8 kg (43.65 lb) |
