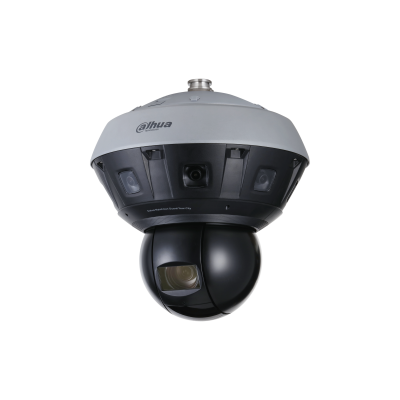

DAHUA PSDW83242M-A360-D845L-S3

Camera

Image Sensor

1/1.8″ CMOS

Max. Resolution

11520 (H) × 2700 (V)

ROM

Panoramic network camera: 8 GB
PTZ camera: 8 GB

RAM

Panoramic network camera: 4 GB
PTZ camera: 4 GB

Scanning System

Progressive

Electronic Shutter Speed

Panoramic network camera: Auto/Manual 1/3 s-1/100,000 s

PTZ Camera: Auto/Manual 1/1 s-1/300,000 s

Min. Illumination

Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE)

PTZ camera:0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Panoramic network camera: NA
PTZ camera: ≥500 m (1640.42 ft) (Laser)

Illuminator On/Off Control

Auto; Zoomprio; Manual

Illuminator Number

Panoramic network camera:NA

PTZ camera:7( LASER LED); 2(IR LED)

Lens

Lens Type

Panoramic network camera: Fixed-focal
PTZ camera: Motorized vari-focal

Lens Mount

Panoramic network camera: M16
PTZ camera: Module

Focal Length

Panoramic network camera: 2.8 mm
PTZ camera: 5.5 mm–248 mm

Max. Aperture

Panoramic network camera: F1.0
PTZ camera: F1.5–F5.3

Field of View

Panoramic network camera: H: 360°; V: 105°
PTZ camera: H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29°

Iris Control

Panoramic network camera: Fixed
PTZ camera: Auto

Close Focus Distance

Panoramic network camera:1.4 m (4.59 ft)
PTZ camera: 0.1 m–5 m (0.33 ft–16.4 ft) (T to W)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Panoramic network camera

57.9 m (189.96 ft)

23.2 m

(76.11 ft)

11.6 m

(38.06 ft)

5.8 m

(19.03 ft)

PTZ camera

4420 m (14501.31 ft)

1768 m (5800.52 ft)

884 m (2900.26 ft)

442 m

(1450.13 ft)

Intelligence

Intelligence Description

Panoramic network camera: Perimeter protection, crowd distribution map, vehicle density.

PTZ camera: Perimeter protection, video metadata, face recognition

IVS (Perimeter Protection)

Panoramic network camera: Tripwire; intrusion; parking detection

PTZ camera: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures.

Vehicle Density

Vehicle density; Parking upper limit; traffic congestion alarm

Crowd Distribution Map

Crowd map, global crowd density; crowd density in area; people counting in area

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, helmet.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Panoramic network camera:
Main stream: 11520 × 2700@(1-25/30fps)
Sub stream: 2048 × 680@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)
PTZ camera:
Main stream: 3840 × 2160@(1-25/30fps)
Sub stream: 704 × 576@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)

Stream Capability

3 streams

Resolution

Panoramic network camera:
Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900
Sub Stream: 2048×452

Third Stream: 3840 × 832; 2560 × 560

PTZ camera:
Main stream: 3840 × 2160; 2560 × 1440; 1960 × 1080; 1280 × 960; 1280 × 720
Sub Stream: 704 × 576; 352 × 288
Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720

Bit Rate Control

CBR/VBR

Video Bit Rate

Panoramic network camera:
H.264: 127 kbps–20736 kbps
H.265: 50 kbps–12544 kbps
PTZ camera:
H.264: 32 kbps–27740 kbps
H.265: 12 kbps –16572 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

Panoramic network camera: DWDR
PTZ camera: 120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Panoramic network camera: Yes (4 areas)
PTZ camera: Yes (8 areas)

Image Stabilization

Panoramic network camera: NA
PTZ camera: Optical Image Stabilization

Defog

Panoramic network camera: NA
PTZ camera: Optical defog

Image Rotation

0°/180° (PTZ camera)

Privacy Masking

Panoramic network camera: 4 areas
PTZ camera: 8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error;
SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; security exception

Network

Network Port

RJ-45(10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Cyber Security

Configuration encryption;trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 400 M)

Storage

FTP; SFTP; NFS; SMB; Micro SD card (support max. 512 GB)

Browser

IE: IE 9, IE 10 and IE11
Chrome: Chrome 42 and earlier
Firefox: Firefox 52 and earlier

Management Software

DSS

Certification

Certifications

CE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

PTZ Dome

Pan/Tilt Range

Pan: 0° to 360° endless Tilt: –12° to 90°, auto flip 180°

Manual Control Speed

Pan PTZ speed: 240°/s, Pan preset speed: 240°/s

Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s

Positioning Accuracy

Pan: 0.05° Tilt: 0.05°

Remote PTZ Reset

Yes

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset/Pattern/Tour/Scan

Time Task

Yes

Three-dimensional Positioning

Yes

PTZ Limit

Yes

Position Display

Yes

Information Display

Yes

Time Display

Yes

Port

Optical Module Specification

SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm

Optical Fiber

FC

Optical Fiber Module Type

Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm

Audio Input

2 channels (terminal)

Audio Output

2 channels (terminal)

Alarm Input

7 channels in: 5mA 3V–5V DC

Alarm Output

3 channels out: 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: BNC)

Power

Power Supply

36 VDC

Power Consumption

Basic: 51.48 W (36 VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 71.9 W (36 VDC)
Heating: Panoramic network camera: 6 W (36 VDC); PTZ: 5.4 W

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Humidity

–40 °C to +70 °C (–40 °F to +158 °F)

Protection

IP66; Anti-Corrosion Protection (optional)

Structure

Casing Material

Metal + plastic

Product Dimensions

Φ383 mm × 462 mm (15.07″ × Φ18.19″)

Net Weight

14.7 kg (32.41 lb)

Gross Weight

19.8 kg (43.65 lb)
