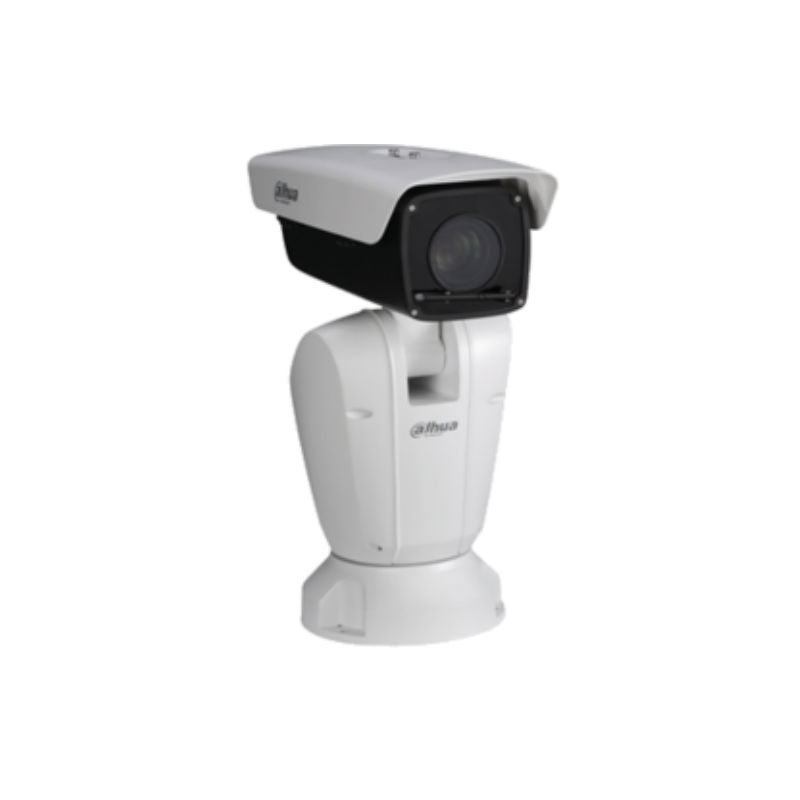

DAHUA PTZ12230F-IRB-N

2MP 30x Network IR Positioning System

> 1/1.8” 2Megapixel CMOS
> Powerful 30x optical zoom
> Starlight technology
> Support Triple-stream encoding
> Max. 25/30fps@1080P, 25/30/50/60fps@720P
> Auto-tracking and IVS
> IR Distance up to 300m
> IP66

描述

Camera

Image Sensor1/1.8″ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/64M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.002Lux@F1.5; B/W: 0.0002Lux@F1.5; 0Lux@F1.5 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 300m(984ft)
IR On/Off ControlAuto/Manual
IR LEDs4
WiperSupport

Lens

Focal Length6mm ~ 180mm
Max. ApertureF1.5~ F4.3
Angle of ViewH: 61.2° ~ 2.1°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1920m(6299ft)768m(2520ft)384m(1260ft)192m(630ft)

PTZ

Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 45°
Manual Control SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan:160° /s; Tilt: 60° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after

power failure

Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

ProtocolDH-SD, Pelco-P/D (Auto recognition)

Intelligence

Event TriggerMotion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map

Video

CompressionH.264 / MJPEG
Streaming Capability3 Streams
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/ 704×480)/CIF(352×288/352×240)
Frame RateMain stream: 1080P(1~25/30fps), 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas

Audio

CompressionG.711a/G.711mu/G.726/AAC

Network

EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageLocal PC for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android

Certifications

CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2

Electrical

Power SupplyAC24V/5A(±25%)
Power Consumption50W, 90W (IR on, Heater on)

Environmental

Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress ProtectionIP66
Vandal ResistanceN/A

Construction

CasingMetal
DimensionsΦ202.7(mm)×390.8(mm)×472.2(mm)
Net Weight10.5kg(23.15lb)
Gross Weight16.5kg(36.38lb)
